Specifications
Product Description

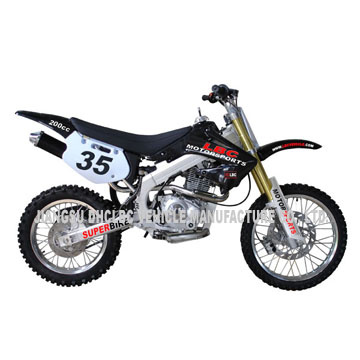

Lbc200gy specs
Type of this model off road
Type of engine: 196.9cc, 4-stroke, 1-cylinder,
Air-cooled, zongshen engine
Bore and stroke: 63x62.2mm
Compression ratio: 9.2; 1
Max power: 12.0k w /8500 rpm
Rated power: 11w /7500 rpm
Max torque: 14.5n. M /6500 rpm
Max speed: E90km/h
Cooling: Air-cooled
Ignition: Cdi.
Transmission: Manual clutch
Final drive: Chain
Starting system: Electric / kick start; Chassis
Suspension/front: 49/53; Upside-down, oil adjustable alloy alu. Fork
Suspension/rear: Oil adjustable, , air absorber
Brakes/front: Disc brake
Brakes/rear: Disc brake
Tires/front: 70/100-19
Tires/rear: 90/100-16.
Other
Feature: Alloy alu. Rims and hubs with heavy duty spokes,
Alloy alu: Handlerars
Alloy alu: Single rear swing arm
Alloy alu, fuel cap
Alloy alu, footrest
Alloy alu, engine bottom cover
Alloy alu, exhaust
Alloy alu, lever
Alloy alu, twin-beam frame, rear fork
Fr. /rr, wheel rim; Steel wire spoke
Option engine: 2 valve, cb250
Passenger: Driver only (75kg)
Seat height: 830mm.
Wheelbase: 1265mm
Fuel capacity: 4.5l
Lubrication oil: 1.2l
Net weight: 100kg
Gross weight: 120 kg
L x w x h, vehicle: 1880x795x1210mm
L x w x h, packag: 1630x450x1100mm
Packed quantity 20'-34 /40'-72/ 40'h-72sets
Colors blue /red /orange /black.
