Specifications
Prod Model: |
XL125 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Engine Type: |
4-Stroke |
Displacement: |
126-250CC |
Certification: |
CQC |
Type: |
Dirt Bike |
Condition: |
New |
Fuel: |
Gas / Diesel |
Product Description

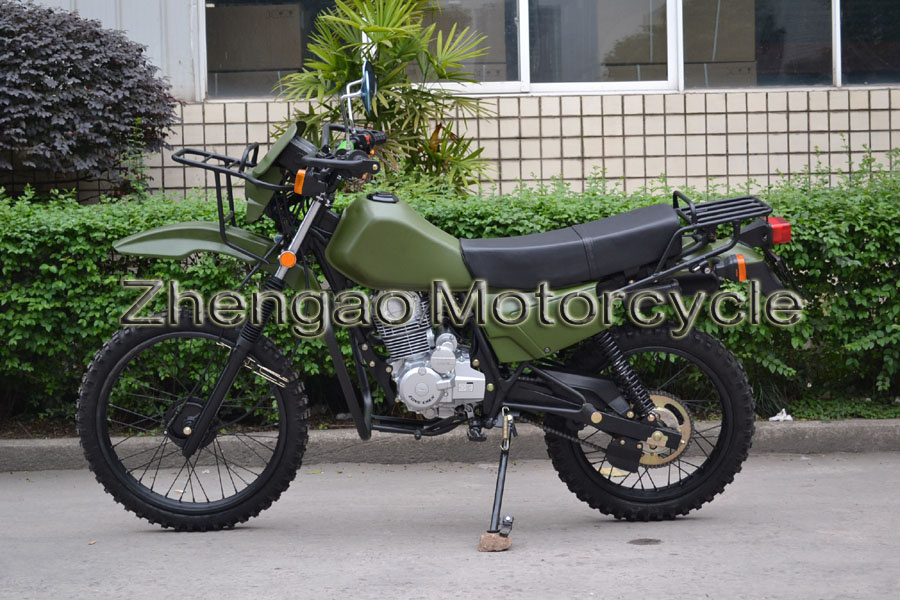

1. The model Off Road Motorcycle XL125 for Military Use is very popular in the market of South America, Asia and Africa. And it is a very good choice for government tender project.
2. We manufacture the chassis by ourselves using robot arm for welding; So best quality of chassis is guaranteed.
3. Zongshen engines are used in all the motorcycles, and all the other parts such as muffler, electric equipments, carburetor match the engine perfectly.
4. We have a full-scale and trustworthy after-sale service.
5. We are a direct manufactuer of motorcycle, price better than trading company and other big factory.
Engine |
Engine Type: |
149cc, 4-Stroke, Single cylinder, Air Cooled |
Bore x Stroke(mm) |
62.5 x 49.5 |
Displacement(ml) |
149 |
Compression Ratio |
9.0: 1 |
Max. Power(kw/r/min) |
9.3/9000 |
Max. Torque(N. m. /rpm) |
11.0/7500± 500 |
Clutch: |
Manual |
Ignition System |
CDI |
Starting Mode |
Electric& Kick |
Chassis |
Fuel Capacity |
8.5L |
Consumption of Fuel: |
≤ 2.2L/100km |
Transmission |
5-Speed |
Wheel Base |
1350mm |
Battery |
12v9Ah |
Seat Height |
840mm |
Max. Speed(km/h) |
100 |
Min. Ground Clearance (mm) |
260 |
Max. Load Capacity (kg) |
150 |
Dry Weight(kg) |
115 |
Gross Weight(kg) |
140 |
Brakes (Front/Rear) |
Disc/drum |
Front Tire: |
2.75-21 |
Rear Tire |
4.10-18 |
Front Suspension |
hydraulic compound spring |
Rear Suspension |
hydraulic compound spring |
Overall Dimension (L× B× H mm) |
2070mmx830mmx1150mm |
Package Dimension (L× B× H mm) |
1800mmx520mmx880mm |
Loading Qty (20/40HQ) |
32/64/96units |
Available Color |
As you required |
