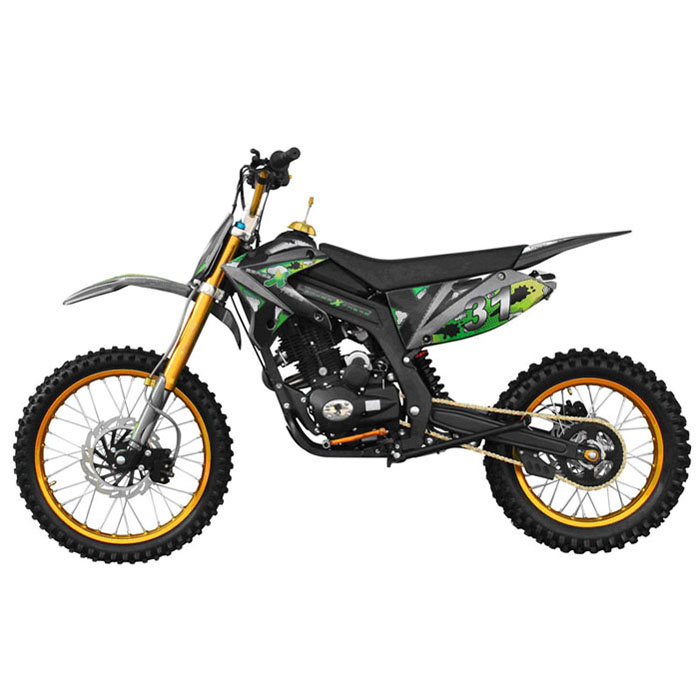

Dirt Bike (DB02)

Specifications

Prod Model:	DB02

Product Description

Bore & stroke 67 x 65 mm 63.5 x 62.2 mm 62 x 49.5mm
Start Kick + electric Kick +electric Kick +electricOr kick start only
Ignition CDI CDI CDI
Compression ratio 9.2:1 9.2:1 9.2:1
Transmission 5 speed or 6 speed ( included neutral gear), international gear
Clutch Manual
Max power 11.5 /6500 (1+/- 5%) 10.8/8000 (1+/- 5%) 9.3/8500 (1+/- 5%)
Frame & swing arm Steel Steel Steel
Front shock reversed front hydraulic shock
Rear shock hydraulic shock
Brake Disc brake
Seat height 890mm
Wheel base 1325mm
Ground clearance 310mm
Front & rear wheel 1) Front 70/100-19", rear 90/100-16"
2) Front 70/100-17" rear 90/100- 14"
Engine and rear sprocket 15 / 48 teeth 15/ 48 teeth 15 / 48 teeth
Product Size 192x82x106cm 192x82x106cm 192x82x106cm
Packing size L/W/H 167/42/75.5cm
G.W / N.W 116.5 / 97 kgs
Colour Red, blue, green, black, carbon black, yellow, orange
Fuel type > 90# (GB17930-1999)
Engine machine oil 15 W / 40SE
20FT/ 40FT/40HQ 50 PCS / 105 PCS / 105 PCS
