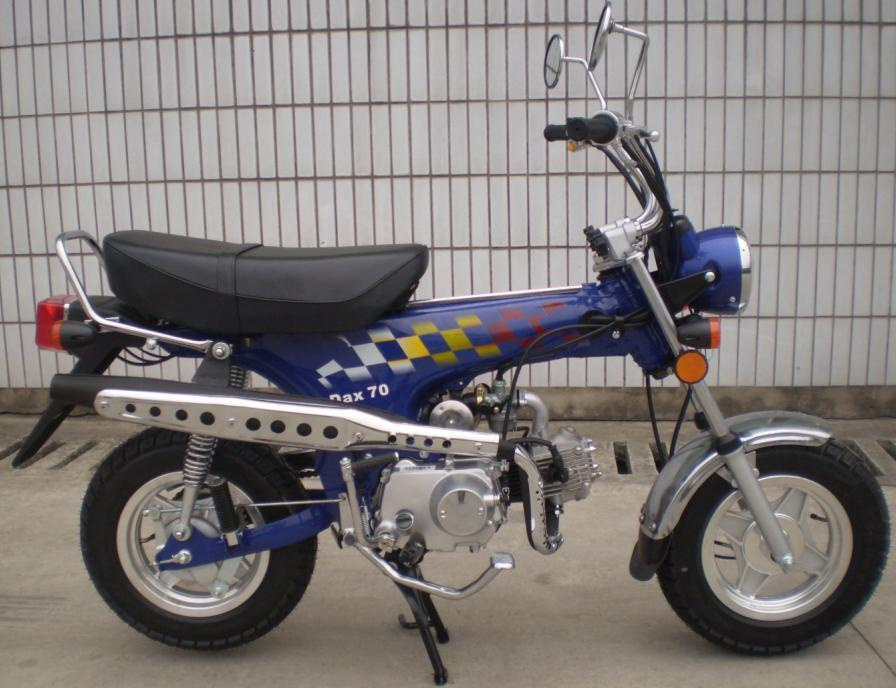

Home Swift Horse Machinery Co., Ltd. DAX Motorcycle
Specifications
Product Description
Model No. SH70QGRDimension ((L× B× H)mm): 1550× 620× 950
Wheel base (mm): 1045
Min. Ground Clearance (mm): 120
Dry Weght: 74kg
Engine Type: Single-cylinder, air-cooled, four-stroke
Engine model: IP47FMD
Bore× Stroke: 47mm× 41.4mm
Displacement: 72ml
Maximum Power: 4.0kw/7500r/min
Maximum Torque: 5.0N. M/4500r/min
Clutch: Wet multi-plate
Lubrication: Pressure/ splash
Start: Kick start
Ignition: C. D. I
Max. Speed (km/h): ≥ 60km/h
Economical Fuel Consumption (l/100km): ≤ 1.61L /100km
Front Type Size and Air Pressure: 3.5-10/175KPa
Rear Type Size and Air Pressure: 3.5-10/200Kpa
Climbing Ability (° ): ≥ 18°
Exhaust Index: CO≤ 4.5%; HC≤ 1200ppm
Start Performance: ≤ 15s
Brake Performance: ≤ 7m/30km/h
