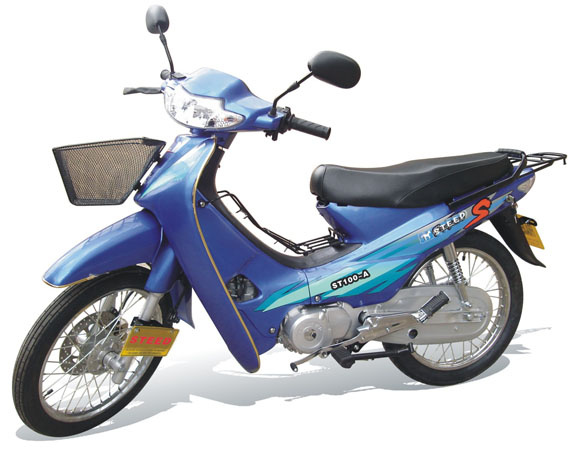

Cub Motorcycle (ST100-A)

Specifications

Prod Model:	ST100-A

Product Description

MODEL: ST100-A
Size(length*width*height): 1900mm*715mm*1050mm
Wheel base: 1210mm

Minimum Ground Clearance: 140mm

Dead Weight: 90kg

Engine Type: Single-cylinder, air-cooled, Four-stroke

Engine Model: 1P50FMG-3/1P52FMH

Bore*Stroke: 50mm*49.5mm/52.4mm*49.5mm

Displacement: 97ml/107ml

Maximum Power: 4.6kw/7500r/min/5.2kw/7500r/min

Maxmum Torque: 6.6N. M/5000r/min/7.0N. M/5000r/min

Clutch: Wet multi-plate

Lubrication: Pressure/Splash

Start: Electric Start/kick start

Ignition: CDI

Maximum Speed: 75km/h/80km/h

Economical Fuel Consumption: ≤1.9L/100km/2.1L/100km

Front Tyre Size and Air Pressure: 2.25-17/175Kpa

Rear Tyre Size and Air Pressure: 2.75-17/200Kpa

Clinmbing Ability: ≥18

Exhaust Index: CO≤4.5%, HC≤1200ppm

Start Performance: ≤15s

Brake Performance: ≤7m/30km/h.
