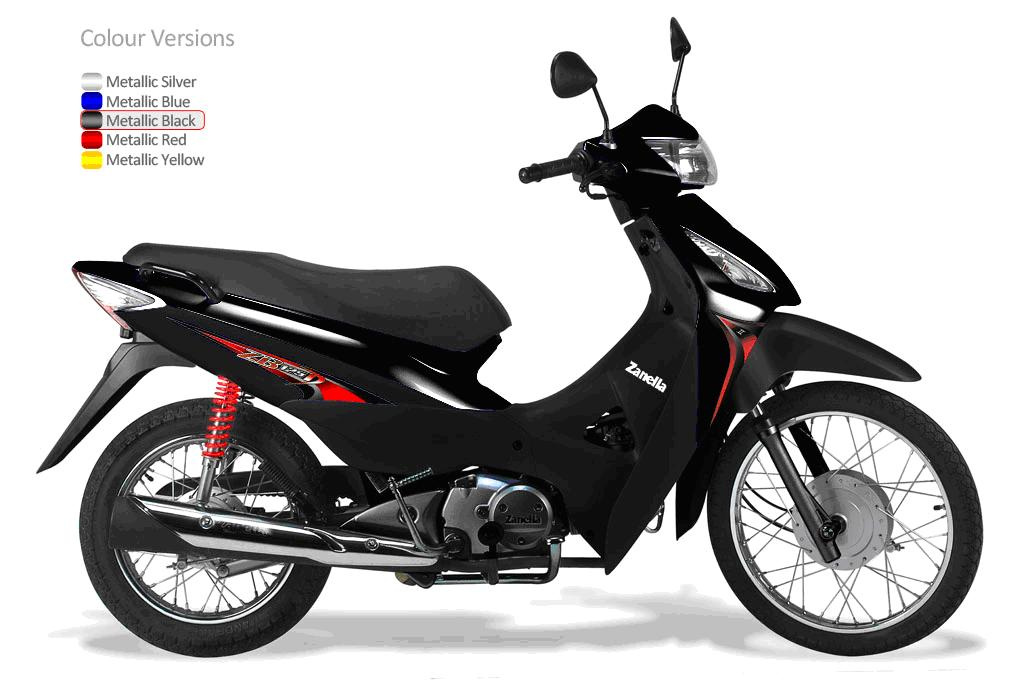

CUB Motorcycle (CB125-III)

Specifications

Prod Model:	CB125-III

Product Description

Body Style
Drive Line: Chain
Engine Family: Cub
Engine Displacement: 125cc
Horse Power: 7.0@8500 rpm
Net Weight: 95 kg
Gross Weight: 102 kg
Dimensions
Length: 1930-710-1220(mm)
Ground Clearance: 125mm/85mm
Wheel Base: 1400mm
Engine Specification:
Type: 4-stroke, Air cooling, Single Cylinder
Manual or Automatic: Auto
Fuel: Gasoline
Displacement: 123.6ml
Bore-Stroke: 50mm-55.5mm
Max Power: 6.2 kw/7500 rpm
Max Torque: 7.8 N. w/7500 rpm
Compression Ratio: 9.00: 1
Transmission:
Model: Automatic Single/Double Clutch
Type: 4 gears
Gearing N-1-2-3-4
Driving Configuration:
Type: Chain
Other Data:
Suspension: Telescopic, Damper Rear
Brakes: Fr Drum/Hydraulic Disc Brake, Rear Drum
Steering: Tubular, Plastic Covered
Wheel and Tires: 2.50-17/2.50-14(Fr/Rr)
Headlight: Halogen Bulb(can be in Philips)
Start: Electric/Kick
Battery: 12V5A, Maintainience Type
Ordering Relative Data:
Loading Qty: Cbu-105 units/40HQ, Ckd-140 Sets/40HQ
Suggested Colors: Red/Blue/Black/Silver/Yellow
