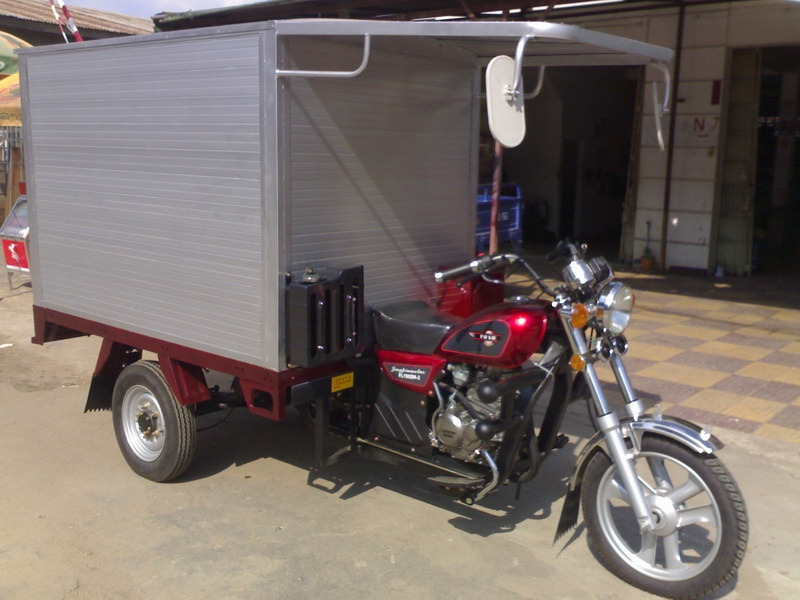

Container Tricycle (JB 150ZH)
| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 18Units |
| Pay Type: | L/C,T/T |
Specifications
| Prod Model: | JB 150ZH |
|---|---|
| Markets: | South America,Southeast Asia,Africa,Mid East |
| Certification: | CCC |
| Displacement: | 126-250CC |
Product Description
Model No.: JB150ZHThe max. Speed: 60km/h
Engine:
The min. Steady speed: ≤ 25km/h
Engine Model No.: LC162FMJ
Economic fuel consumption: 2.8 L/100km
Engine type: Single cylinder, 4-stroke, air cooling,
Total weight: 354kgs
Bore x stroke: 62.0× 49.5mm
Rated load: 350kgs Displacement: 150ml
Max. Shaft load (Front/rear): 880N / 2600N
Compression ratio: 9.0: 1
Dimensions: (LxWxH) (mm): 3330× 1270× 1450
Max. Power / rotating speed: 10.0 KW /6000 r/min.
Wheelbase: 2150mm Rated power / rotating speed: 8.0 KW /8500 r/min.
Wheel track: 985mm Max. Torque / rotating speed: 8.5 N. M/8500r/min
Ground clearance Min.: 170mm
The Min. Fuel consumption: 354g/kW/h
Diameter of turning: 6000mm
The Min. No-loading steady rotating speed: 1500r/min
Turning angle (L/R): 25° /25°
Ignition: C. D. I.
Fuel tank volume: 12L
Starter mode: Electric & kick start
Brake type (Front/rear): Drum/ drum
Lubrication: Forced Splash lubricating
Brake distance(30km/h): ≤ 7.5m
Lubricating oil: 15W/40-SE
Brake power: Front wheel ≥ 600N, rear wheel≥ 1550
Fuel brand: RQ-90
Climbing ability: 10°
Carburetor: PZ27
Wheel rim type: Press steel and rolling
Air filter type: JB150ZH. 11-00
Tire type (Front/rear): 3.25-16/5.00-12
Valve type: Under camshaft type
Tire pressure (Front/rear): 225/250 Kpa
Transmission:
Shock absorber type (Front): Sleeve type, hydraulic damping
Clutch type: Wet, multiple plate
Shock absorber type (Rear): Plate spring
Gearbox type: Manually
Front light specification: 12V 35W/35W
Primary reduction ratio: 4.055
Trun light: 12V 10W
Final reduction ratio: 3.390
Brake light: 12V 10W
Transmission type: Shaft
Meter indicating light: 12V 2× 3W
Gear ratio on the 1st gear: 2.769
Position lamp: 12V 5W
Gear ratio on the 2ND gear: 1.882
Battery: 12V 9Ah Gear ratio on the 3rd gear: 1.400
Horn: Vortex horn Gear ratio on the 4th gear: 1.130
Radio suppressor mode: Resistance
Gear ratio on the 5th gear: 0.960
Coasting distance: ≥ 200m
Exhaust catalytic converter type: GR7-M
Starting acceleration time: ≤ 30s Spark plug: D8RTC
Passing acceleration time: ≤ 27s Guarantee: ≥ 6000kms
Side tilt stability angle (L/R): ≥ 25°
Durability: ≥ 20000kms
Dimensions of rear box(LxWxH): 1900X1300X870mm and 1800x1200X870mm are available
