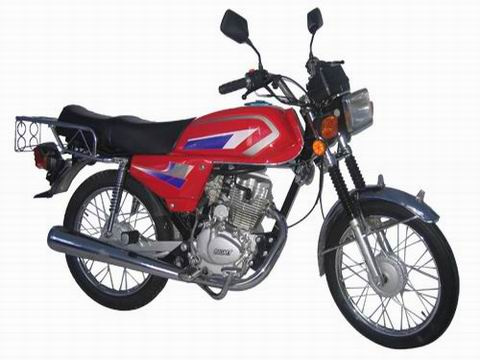

CNG Street Bike (CNG-HQ125-2)

Specifications

Prod Model:	CNG-HQ125-2

Product Description

Dimension (LxWxH): 1980x720x1010(mm)
Wheel base: 1220mm
Dry weight: 110kg
Max. Load: 150kg
Max. Speed: 85km/h
Braking system (front/rear): Drum/drum
Brake Performance: Less than 7m/30km/h
Engine type: Single-cylinder, air-cooled, four-stroke
Starting system: Electric start/kick start
Displacement: 124.5ml
Bore xStroke: 56.5x49.5(mm)

Maximum Power: 9.2kW/9000r/min
Maximum Torque: 10.2N. M/8000r/min
Ignition mode: CDI
Gasoline tank: 1.5L
CNG cylinder water capacity: 7.0L
Gas capacity: 1.4m3
Economical fuel consumption (Gasoline): 1.68L/100km
Economical fuel consumption (CNG): 1.6m3/100km
Working environment temperature of CNG cylinder: 50~60 Centigrade
Working pressure of CNG cylinder: 20MPa
