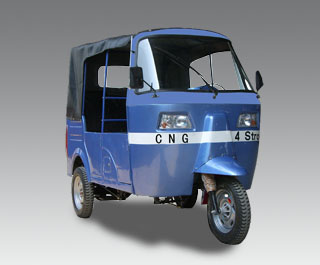

CNG Motorcycle

Specifications

Prod Model:	six different models

Product Description

We can provide all kinds of advanced motorcycle
E. G.

1)MODEL: MX150ZK/MX175ZK
Displacement 150CC
Standard Net Power (150cc Engine) 9.5KW / 8500r / min
Maximum Net Torque (150cc Engine) 10N. M / 7500r / min
Idle Speed(RPM) 1500RPM
Igniation System(RPM) CDI
Lubrication Method Pressure Splash
Fuel capacity Petrol tank 12L
Clutch Method Hand Operation And Adjusting
Transmission 5 Forward + 1 Reverse
Fuel Type RQ-90
Brake (FRONT/REAR) MECHANICAL
Starting System ELECTRIC / KICK
Front Suspension HYDRAULIC SPRING
Rear Suspension COMPLETE / HYDRAULIC SPRING
Design Max Speed (150cc Engine) ≥60km/h
Ground Clearance 170mm
Wheel Base 1800
Saddle Height 420/DRIVER 380/PASSENGER
Turning Circle semi-diameter 3.6m
Wheel Track(Rear) 1130
Tire 4.00-12
20FT(PCS): 8UNITS
40FT(PCS): 18UNITS
40HQ(PCS): 27UNITS

2)MODEL: MX150ZH/MX175ZH

Dimension (L X W X H) (mm): 2730X1250X1720
Fuel: Petrol/petrol+CNG
Transmission: Shaft
Brake: Mechanical/hydraulic
Chassis: Integrated rigid chassis
Max. Load (kg): 350
40'HQ Qty. (SKD/CKD unit): 26/60

3)MODEL: FM150ZH

DIMENSION (mm): 3240X1200X1220
Wheel Base (mm): 2120
Tread Base (mm): 1080
NET WEIGHT (KG): 300
Max. Load (KG): 500
MAX SPEED (km/h): 60
Engine Type: DJ162FMJ
Displacement: 149.4ml
Rated Power: 7.6KW
Starting Way Electric/Kick
Lgnition Type: C. D. I
40'HQ Quantity: 38

4)MODEL: FM110ZK-2

DIMENSION (mm): 2500X1230X1320
Wheel Base (mm): 1780
Tread Base (mm): 1080
NET WEIGHT (KG): 240
Max. Load (KG): 465
MAX SPEED (km/h): 50
Engine Type: DJ152FMH
Displacement: 107ml
Rated Powe: R 4.6KW
Starting Way: Electric/Kick
Lgnition Type: C. D. I
40'HQ Quantity: 33
