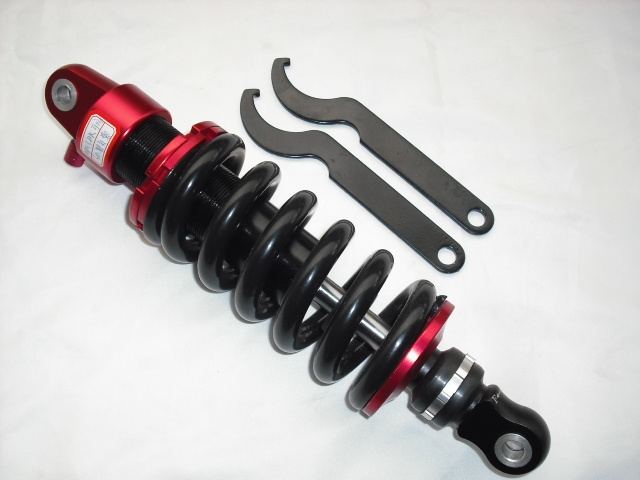

CNC Hydraulic Adjustable Steel Spring Rear Shock Absorber for Dirt Bikes
| Price: | US $ 50-200 |
|---|---|
| Trade Terms: | Sea Transportation |
| Min Order: | 100/Piece |
Specifications
| Prod Model: | RB-33AR |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
CNC Hydraulic Adjustable Steel Spring Rear Shock Absorber for Pit Dirt Bikes ATV PartsAL6061-T6 CNC Machining
Air & Oil pressure shock absorber
3types adjusting: Externally adjustable rebound damping, adjustable preload, adjustable air pressure of the spare
Axle diameter: 14mm
Eye to eye length: 270mm-310mm 330mm-370mm 380mm-400mm
Fits: Pit/dirt bike ATV Parts
Travel: 50mm 80mm 110mm
Spring rate: 1200/650LBS/IN 800/600/150LBS/IN 200/150LBS/IN
Upper mounting size: Φ 10*20mm for eye to eye length 270mm-310mm, valid travel 50mm spring rate 1200/650 800LBS/IN Φ 10*20/32mm for eye to eye length 330mm-370mm 380mm-400mm valid travel 80mm 110mm spring rate: 600/150 200/150LBS/IN
Lower mounting size is the same as the upper.
It is good in stretching curve, as well as high sensitive and rapid reaction even a tiny impact.
The CNC milling machine with Misubish control, CNC machines, digital control lathes. We are able to produce the products as accurate as possible as your drawing and specification.
Your logo and trademark are welcome.
We are the manufacturer in the rear shock absorber for many years. We provides completed sizes for your option, we can also design as your requirement
