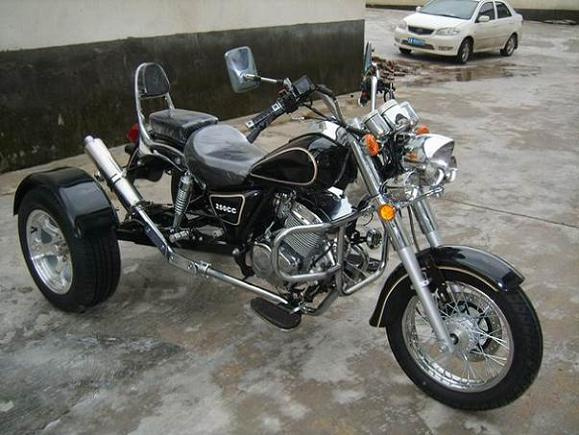

Chongqing-ATV (JL150-8(200CC /250CC))

Specifications

Prod Model:	JL150-8(200CC /250CC)

Product Description

Product explanation: Engine type: 1-cylinder, air-cooled, 4-stroke
Displacement(ml): 149
Ingnition type: CDI
Starting: Electric
Max. Power(kw/r/min): 8.5/7500
Max. Torque(n. M/r/min): 11.6/6000
Final drive: Chain
Fuel tank capability(L): 12
Std. Fuel consumption: 2.9L/100KM
Transmission: 4 forward speeds-reverse
Clutch: Manual
Brake: Disc/Disc
Max speed(km/h): 70
Climb capacity: 20
Wheel base(mm): 1600
Seat height(mm): 820
Ground clearance(mm): 170
Turning radius(mm): 2700
Gross weight(kg): 240
Net weight(kg): 210
Front tyre: 110/90-16
Rear tyre: 4.50-12
Battery: 12v9ah
Max. Load(kg): 140
Vehicle dimension(mm): 1980*1140*1300
Packing dimension(mm): 1900*1060*880
CBU: 40'hq/40'ft/20ft: 36/24/12
