Home Jinhua Winshine Tools Co., Ltd. Children ATV Recharger Electric Quad
Children ATV Recharger Electric Quad
| Price: | US $ 610-680/Piece |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 10/Piece |
| Pay Type: | T/T |
Specifications
| Prod Model: | WS-E7015 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Transmission Type: | Automatic |
| Engine Type: | 2 Stroke |
| Structure: | Without Door |
| Transmission System: | Chain Drive |
| Fuel: | Electric |
| Brake Type: | Disc Brake |
| Maximum Speed: | <50 km/h |
| Power: | 500-800W |
| Certification: | CE |
| Condition: | New |
| Brand: | OEM |
| Displacement: | 500W |
Product Description
1.800wBrush Motor 1. children atv Recharger electric quad with 3pcs,12V12Ah
2. DC Converter : DC input 30V-60V/out put 12V
3.Battery :3pcs x 12v ,12AH , Lead-gel batteries , recharheble battery, duration of charging 12hours
4. Recharger : 100-240V.50/60Hz
5. Voltage value : 42±0.5V
6. Life of storage battery : About three hundred cycles
7. Net weights: 86kg
8. Gross weight : 96kg
9. Load capacity : : ≤80kg
10. Tire size: 145/70-6/145/70-6
11. Break: rear/disc, front/disc
12. Front and rear spring
13. Rated speed: ≤20 km/h
14: Products size :1310x730x840mm
15.Carton size :1160x650x560mm
18. Headlamp : 12V35W/35W
19. Wheelbase : 850mm
21. Front /Rear wheel base : front 600/rear 555mm
22. Minimum ground clearance : 75mm
23. The way of Gearshift : front speed , reserve gear
24.Transmission: chain
25. Qty: 64pcs/20, 72pcs/40, 144pcs/40HQ
500w /800w /1000w electric mini quads with CE
1. 36V 500W Electric mini ATV
2. 3pcs 12V12Ah batteries in batteries packs - fast change
3.Same model 800W is available, and same model 1000w with 4pcs x 12V20Ah batteries is available .
2. 3pcs 12V12Ah batteries in batteries packs - fast change
3.Same model 800W is available, and same model 1000w with 4pcs x 12V20Ah batteries is available .
4. Forward & backward
5. Chain Drive
6. Approval CE & EMC certicitate

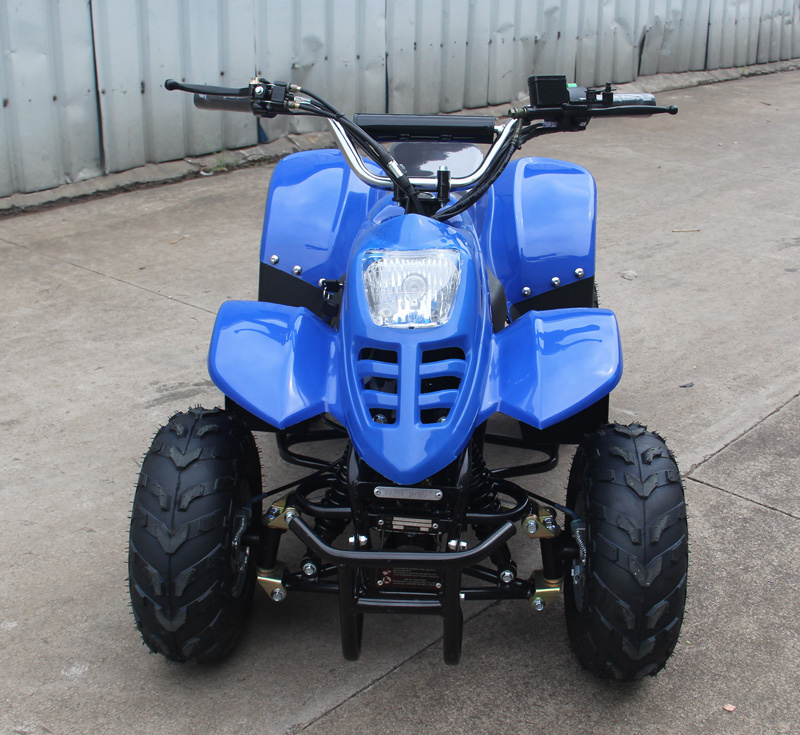

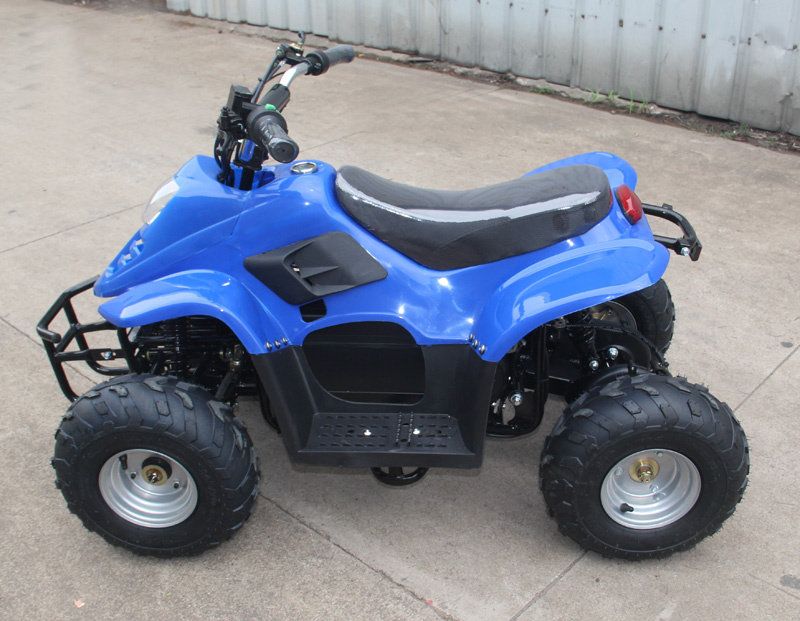

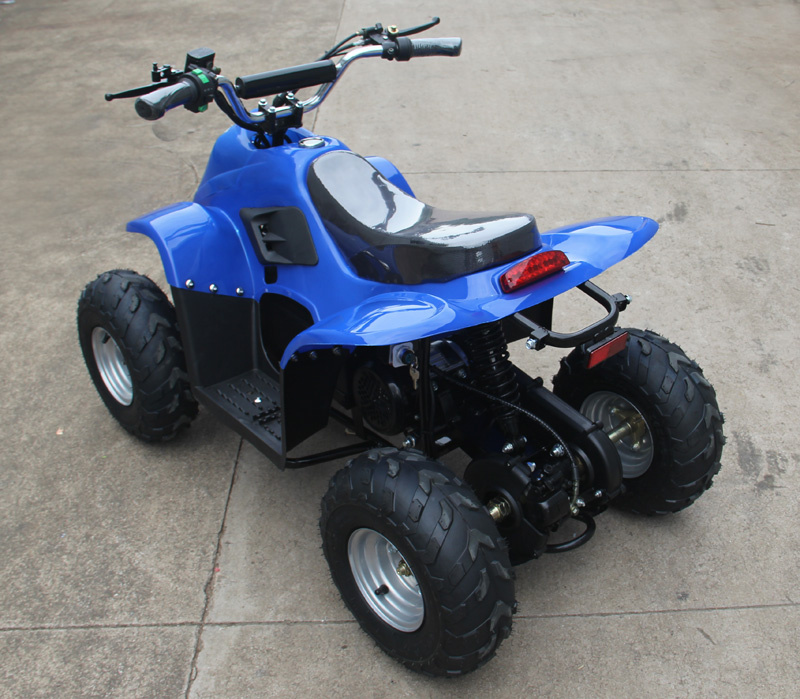

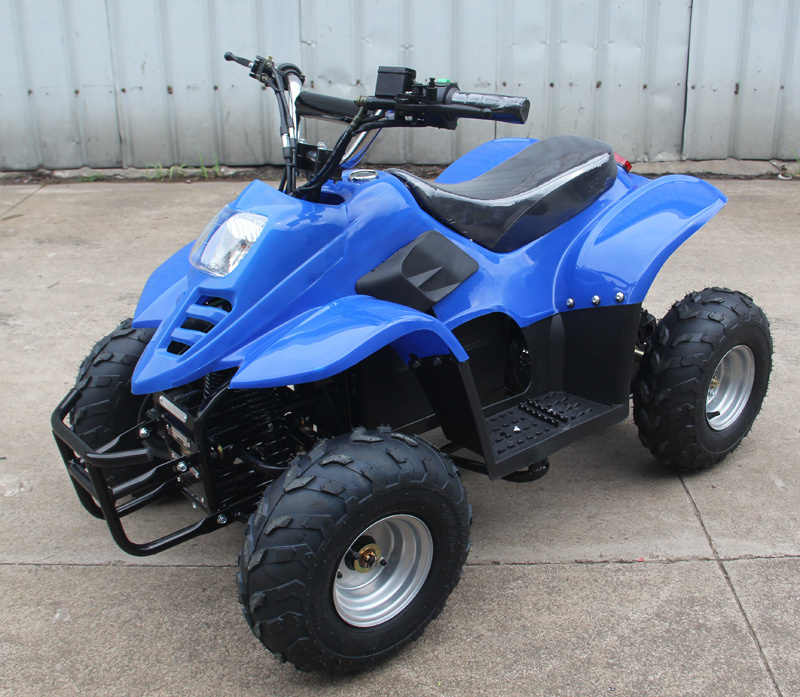

The details of kids electric quad:
