Home Wiztem Industry Company Limited Cheap Price CE Approved 200cc Quad ATV

Cheap Price CE Approved 200cc Quad ATV

Cheap Price CE Approved 200cc Quad ATV
Price: US $ 1476.711/Piece
Trade Terms: FOB
Min Order: 5/Piece
Pay Type: Paypal,Western Union

Specifications

Prod Model: AT2002-A
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wheel Number: 4
Starting System: Electric
Fuel Tank Capacity: 11L
Ignition Method: Cdi
Max.Power: 10.0kw/7,500rpm,11.0kw/7500rpm
Max.Torque: 13.5n.M/5,500rpm, 17.5n.M/5,000rpm
Battery Spec: 12V,9ah
Front Suspension Detail: Double a X Swing Arm
Rear Suspension Detail: Mono Shock Swing Arm
Wheel Side: Front: Front: 23X7-10, Rear: 22X10-10
Transmission System: Chain Drive
Transmission Type: Manual
Certification: CE
Engine Type: 4 Stroke
Fuel: Gas / Diesel
Displacement: 200CC
Structure: Without Door
Maximum Speed: 50-75 km/h
Brake Type: (Front/Rear) Drum/Drum(for Shaft),Disc(for Chain)

Product Description

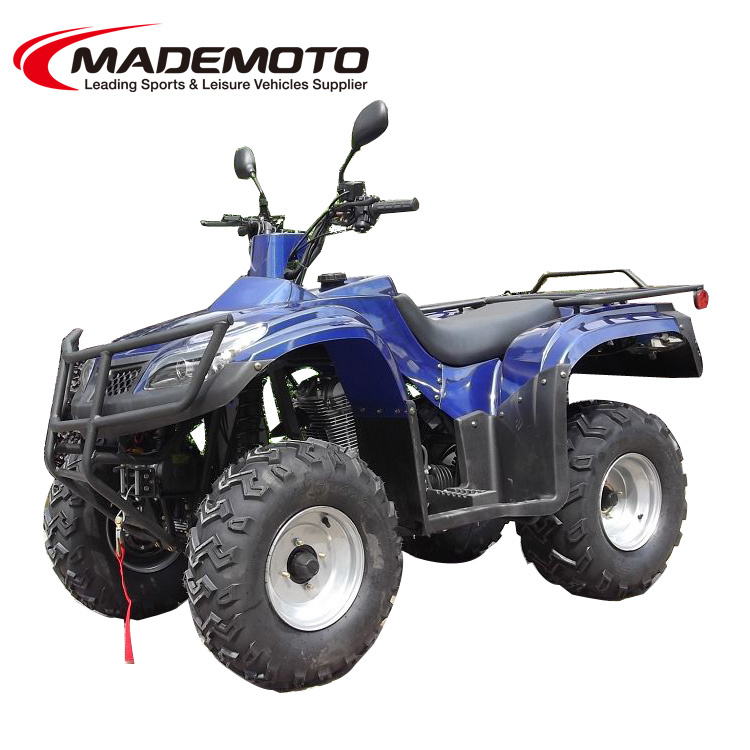

Quad ATV
CE Approved 200CC ATV Equipped with Powerful Engine
AT2002-A
Key Specifications:
1. Wheel number: 4
2. Piston displacement: 200cc
3. Engine type: Single cylinder,
4. Starting system: Electric
5. Fuel tank capacity: 11L
6. Drive train: Chain
7. Ignition method: CDI
8. Max. Power 10.0kw/7, 500rpm, 11.0kw/7500rpm
9. Max. Torque: 13.5N. M/5, 500rpm, 17.5N. M/5, 000rpm
10. Brakes: (Front/Rear) Drum/Drum(for shaft), Disc(for chain)
11. Transmission: Manual clutch, 4-speed, reverse gear, chain/shaft drive
12. Battery spec: 12V, 9AH
13. Front suspension detail: Double A x swing arm
14. Rear suspension detail: Mono shock swing arm
15. Wheel side: Front: 23x7-10, rear: 22x10-10
16. Vehicle dimension: 208x124x113cm
17. Wheel base: 116cm
18. Seat height from ground: 90cm
19. Min. Ground clearance: 155mm
20. Loading capacity: 165kgs
Package: Iron cage with carton outside
21. Net weight: 206kgs
22. Gross weight: 228kgs
23. Carton size: 194x109x84cm/1pc
24. Container: 12pcs/20', 24pcs/40', 36pcs/40'HQ
