Specifications
Prod Model: |

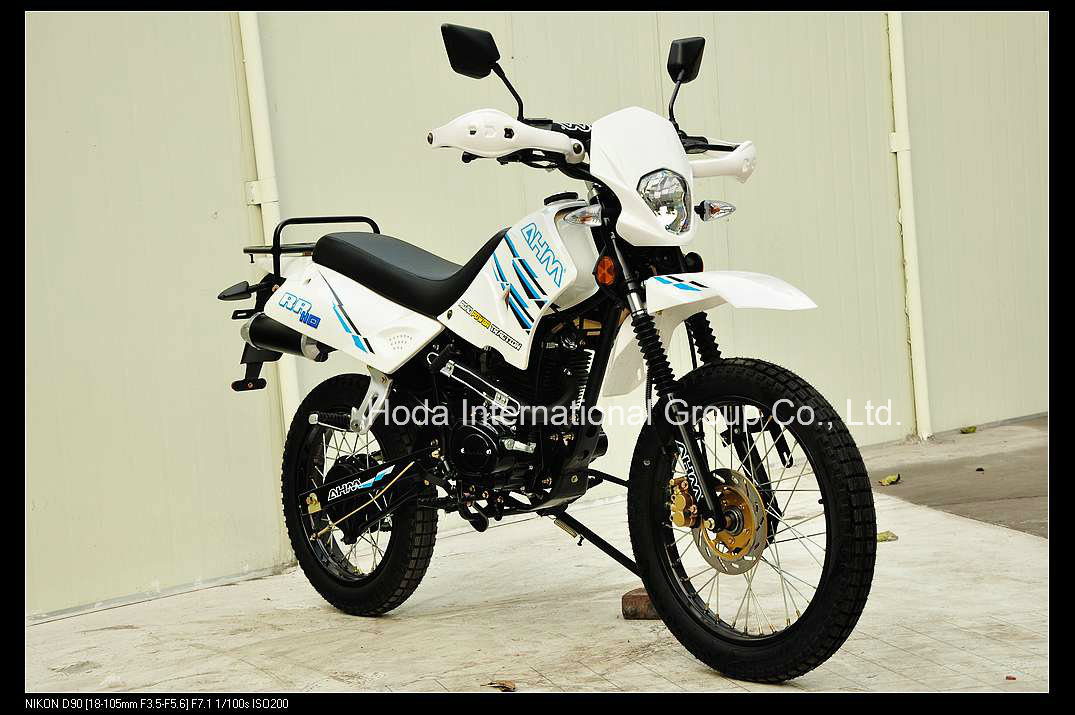

HD125Y-2 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
Many Color Available: |
High Performance & Quality |
Type: |
Moped |
Displacement: |
51-125CC |
Engine Type: |
4-Stroke |
Fuel: |
Gas / Diesel |
Certification: |
CQC |
Condition: |
New |
Product Description
We make Motorcycles, Scooters,US Style Chopper, Bajaj Passenger Tricycles, Cargo trikes, electric bikes, electric scooter, Electric tricycles, ATV quad, spare parts etc
Overall Length(mm): 2080mm Overall Width(mm): 830mmOverall Height(mm): 1240mmWheelBase(mm): 1320mmGround Clearance(mm): 250mmDry Weight(kg) 95kgMax. Load Mass(kg): 150kgMax. Speed(km/h): 90km/hTire: Front: 2.75-21/200KPa Rear: 4.10-18/225Kpa Rim Type: Spoke/Alloy Driving Mode: By ChainBrake Mode: Front: Disc Rear: Drum or Disc Brake Operation Mode: Front: By Hand Rear: By FootEngine: 156FMI Engine Type: Single Cylinder Four StrokeCylinder Type: Vertical Bore X Stroke(mm): Dia.56.5 X 49.5(mm) Piston Displacement: 124cc Compression Ratio: 9.0:1 Max. Torque(N.M/rpm): 8.2/7500(N.M/rpm) Lubrication: Compress & Splash Combined Type Max. Output Power(kw/rpm): 8.5/9500(kw/rpm) Ignition: C.D.IStarted System: Electric Starter/Kick Starter Engine Cooling: Air CoolingTransmission: Five Speed GearshiftClutch: Manual, Wet and Multi-Disc TypeBattery: 12V7AHFuel Capacity: 13LEconomical fuel consumption (l/100km): 1.6Break Performance: ≤7m/30km/h
Max. Fork advancing angel (°): 23°
Max. Voice (dB (A): 82Shipping Size: (Front wheel, front fender and handlebar locked down) Packing Size(LxWxH)(mm): 1690 X 460 X 870 mm Weight: Net Weight: 95kgs Gross Weight: 120kgsQuantity Of Container: 20'FCL: 26 units40'FCL: 56 units40'HQ: 78 units
