Home Wuxi Yingkesong Import & Export Trading Co., Ltd. Chain Drive 250cc off Road Dirt Bike

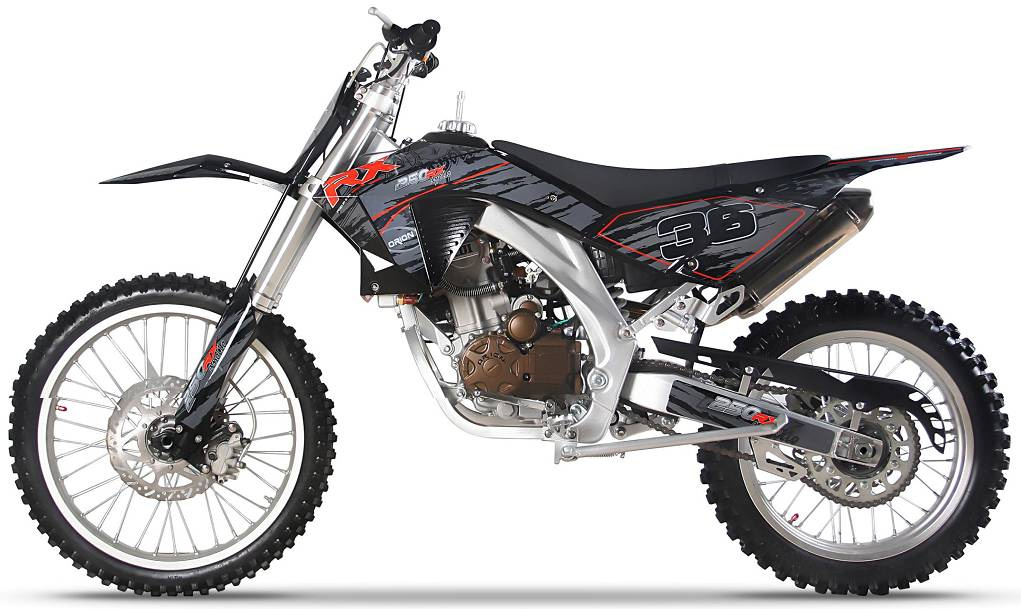

Chain Drive 250cc off Road Dirt Bike
| Price: | US $ 500/Piece |
|---|---|
| Trade Terms: | FOB,EXW |
| Min Order: | 5/Piece |
| Pay Type: | L/C,T/T,Paypal,Western Union |
| Prod Model: | LS-DB-250B |
|---|---|
| Type: | Dirt Bike |
| Displacement: | 126-250CC |
| Certification: | CE |
Product Description
Chain Drive 250cc Off Road Dirt Bike 4-Stroke; Single CylinderSpeicification:
| ENGINE | List for standard parts: | |
| Engine Type 4-Stroke; Single Cylinder | Taiwan made 530# KMC chain | |
| Bore & Stroke:70X64.8mm(250cc water cooled) | Taiwan made NGK spark plug | |
| Carb. Size 30MM (250cc) | stainless steel KTM REPLICA exhaust 36mm big bore | |
| Battery 12N9-4B-1(12V9A) | adjustable rear shock. | |
| Cooling: water cooled | 54mm inverted forks with265mm travel | |
| Starter: Kick Start & E-start | Knobbier Tires with alloy wheels 21/18 | |
| Max Power:13kw/7000r/Min | Alloy 28mm tapered handle bar. | |
| Max Speed:100km/h | Rear brake lever alloy tip. | |
| Ignition:CDI | Aluminum chain adjuster bracket . | |
| Compression Ratio 9.5:1 | New design 270mm large front wave brake disc | |
| Fule Type: >90#(GB17930-1999) | 25mm Axle for F/R hubs | |
| Engine Machine oil:15w/40se | Double piston Hydraulic disc brake | |
| DRIVETRAIN | 15mm Heavy duty swing arm bolt | |
| Transmission:5-Speed, international shift pattern | Aluminum handle bar clamp with risers | |
| Clutch:Manual | 5 gear for engine (1-0-2-3-4-5) 13KW 250cc | |
| Final Drive Chain: KMC 530 | 25-30 Day Production Time | |
| CHASIS/SUSPENSION/BRAKES | 40% deposit, 60% balance or L/C at sight . | |
| Frame / Swing Arm:High Strength Steel | CE Approval:(98/37):EU 02 031391 01 | |
| Front Forks:54mm wide inverted | (89/336) : EU 01031185 01 | |
| Front forks: with 265mm travel and 910mm length | ||
| Rear Shock:Adjustable | ||
| F & R Brakes: F & R Double Piston Caliper | ||
| DIMENSIONS/CAPACITY | ||
| Seat Height:930mm/880mm | ||
| Wheel Base:1420mm | ||
| Handle Height:1130 x 820mm | ||
| Ground Clearance: 280mm | ||
| Tank Capacity: 8L | ||
| F & R Wheel:Front 90/90-21 ;Rear 140/80-18 | ||
| Engine & Rear Sprocket Tooth Count:12(Engine) ; 38(Rear Sprocket) | ||
| Product Dimension: L / W / H 2140x 820x 1235 mm | ||
| Package Dimension: L / W / H 180 X 43 X 95cm | ||
| G.W. / N.W. :118kg/124kg | ||
| OTHERS | ||
| Colors: Apollo Black, Dark Gary | ||
| Decals:Orion / Hyena? trade decal (OEM is welcomed) | ||
| Toolset Standard | ||
