Home Wuxi Sinyo Wing Motorcycle Co., Ltd. Cg Big off Road

Cg Big off Road

Cg Big off Road
Price: US $ 530-550unit
Trade Terms: FOB
Min Order: 96/Piece
Pay Type: T/T

Specifications

Prod Model: GY-3 (OFF ROAD-12)
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 2080*810*1120 mm
Engine Brand: Lifan/Zongshen
Loading: 30 Units/20 Ft 96 Units/ 40hq
Brand Name: Sinyo Wind/ OEM
Type: Dirt Bike
Displacement: 126-250CC
Engine Type: 4-Stroke
Fuel: Gas / Diesel
Certification: COC
Condition: New

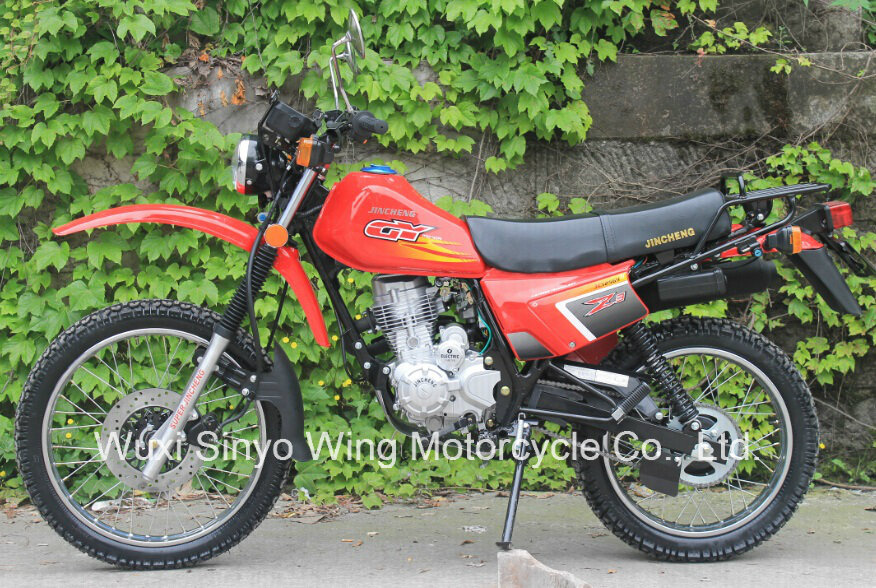

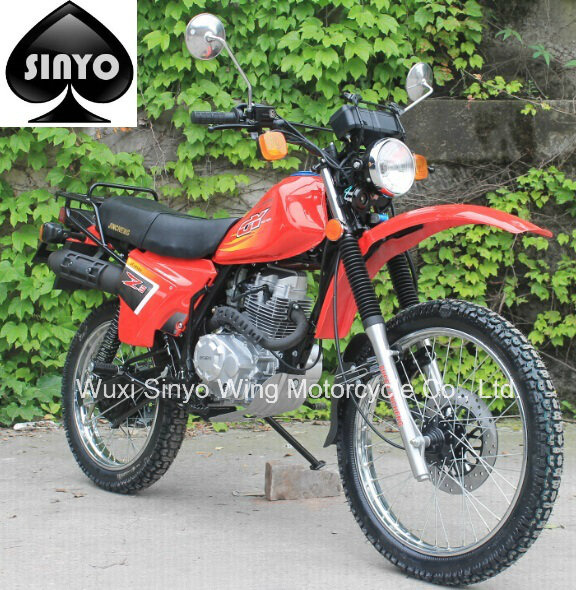

Product Description

DIMENSIONS
Displacement197 ml Lifan CG
Engine1 Cylinder, 4 Stroke
Bore & Stroke63.5×62.2
Cooling SystemAir Cooled
Compression Ratio9.0:1
Fuel feed90#
Max Power( Kw/rpm)10.5/7500
Max Torque(N.M/rpm) 14.0/6500
Max Speed95km/h
Fuel consumption2.2L/100KM
IgnitionCDI
TransmissionChain
Fuel tank capacity9L
Starting SystemElectric+kick start
Front BrakesDrum brake
Rear BrakeDrum brake
Front suspensionHydraulic Suspension
Rear suspensionSingle Suspension
Front wheelsSpoke wheel 3.00-21
Rear wheelsSpoke wheel 4.60-18
BASIC SPECIFICATION
Ground clearance185 mm
Wheel base1370mm
Payload150kg
Net Weight130kg
Gross Weight155kg
L*W*H2080*810*1120 mm
Packing size1820*450*860mm



Spec and option


1,It can match multicolor and stickers
2,we can do 50CC power, also we can do 125CC,150CC,200CC and 250CC 1 Cylinder,250CC 2 Cylinder,300CC Air cooled and 300CC Water cooled models.
3,Front and rear vacuum tire: durable, fasten, balanced, and beautiful. The tire is wear-resisting and aiti-explosion.
4,Front and rear disc brake has high safety performance and has no noise

5,The engine can install CGB or CBB engine.
6.we can install digital speedmeter,inverted shock absorber, double muffler

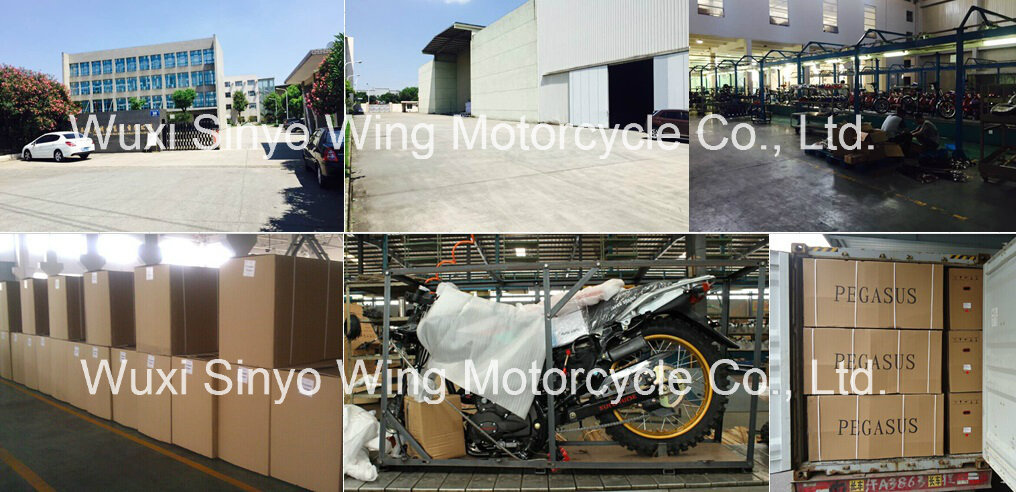

Packaging & Shipping


We supply carton packing with iron stand for CBU or SKD, engine package of CKD order use carton packing and be separated to the body part. Body parts of CKD are packaged with carton or with plywood box one unit by one package.




Our Services
1.We supply the whole set of spare parts of motorcycles, from Engines to Screws.
2.We guarantee 100% rate of qualified products in your factory.
3.Our engineers have more than 20 years experience in motorcycle production.
4.We guarantee 30 days of delivery time.
5.We guarantee that the vehicles for free service of 12 months or 12000 miles.

Company Information

Wuxi Sinyo Wing Motorcycle Co., ltd is located in Wuxi, Jiangsu Province, specialized in motorcycles, scooters, tricycles,E-scooters and CKD products. Our company has professional facilities, technologies and inspectors who have been working in this field for long years and could share the correct advice with clients!
