Home Wiztem Industry Company Limited CE/EEC Approved 14 Inch Aluminium Wheels ATV (AT3001)

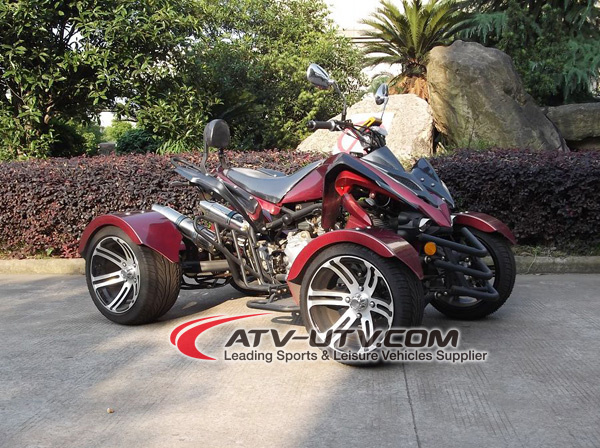

CE/EEC Approved 14 Inch Aluminium Wheels ATV (AT3001)
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 5/Piece |
| Pay Type: | L/C,T/T,Paypal,Western Union |
Specifications
| Prod Model: | AT3001 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wheel Number: | 4 |
| Fuel Tank Capacity: | 8L |
| Ignition Method: | Cdi |
| Max.Power: | 13.0kw/6,500rpm |
| Max.Torque: | 20.5n.M/5,000rpm |
| Battery Spec: | 12V,9ah |
| Front Suspension Detail: | Double a X Swing Arm,:Air Chamber Shock Absorbers |
| Rear Suspension Detail: | Divided Ballonet Absorber |
| Wheel Side: | Front: 235X30-14, Rear: 270X30-14 |
| Vehicle Dimension: | 198X129X100cm |
| Transmission System: | Chain Drive |
| Certification: | EEC |
| Engine Type: | 4 Stroke |
| Fuel: | Gas / Diesel |
| Displacement: | 300CC |
| Structure: | Without Door |
| Maximum Speed: | >75 km/h |
| Transmission Type: | Electric |
| Brake Type: | (Front/Rear)Disc/Disc |
Product Description
CE/EEC Approved 14 Inch aluminium wheels ATV (AT3001)AT3001
Key Specifications:
1. Wheel number: 4
2. Piston displacement: 300cc CVT
3. Engine type: Single cylinder, water-cooled
4. Starting system: Electric
5. Fuel tank capacity: 8L
6. Drive train: Chain
7. Ignition method: CDI
8. Max. Power 13.0kw/6, 500rpm
9. Max. Torque: 20.5N. M/5, 000rpm
10. Brakes: (Front/Rear)Disc/Disc
11. Transmission: Automatic CVT, R-N-F, reverse gear, chain
12. Battery spec: 12V, 9AH
13. Front suspension detail: Double A x swing arm,: Air chamber shock absorbers
14. Rear suspension detail: Divided ballonet absorber
15. Wheel side: Front: 235x30-14, rear: 270x30-14
16. Vehicle dimension: 198x129x100cm
17. Wheel base: 142cm
18. Seat height from ground: 74cm
19. Min. Ground clearance: 80mm
20. Loading capacity: 370kgs
Package: Iron cage with carton outside
21. Net weight: 229kgs
22. Gross weight: 252kgs
23. Carton size: 180x112x74cm/1pc
24. Container: 18pcs/20', 39pcs/40'HQ
