CE/EEC 300cc ATV
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 5/Piece |
| Pay Type: | L/C,T/T,Western Union |
Specifications
| Prod Model: | AT3001 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Loading Capacity: | 370kgs |
| Min. Ground Clearance: | 80mm |
| Seat Height From Ground: | 74cm |
| Wheel Base: | 142cm |
| Wheel Side: Front: | 235X30-14 |
| Rear: | 270X30-14 |
| Engine Type: | 4 Stroke |
| Brakes: (Front/Rear): | Disc/Disc |
| Piston Displacement: | 300cc CVT |
| Drive Train: | Chain |
| Transmission System: | Chain Drive |
| Transmission Type: | Automatic |
| Certification: | CE |
| Fuel: | Gas / Diesel |
| Displacement: | 300CC |
| Structure: | Without Door |
| Maximum Speed: | 50-75 km/h |
| Brake Type: | Disc Brake |
Product Description

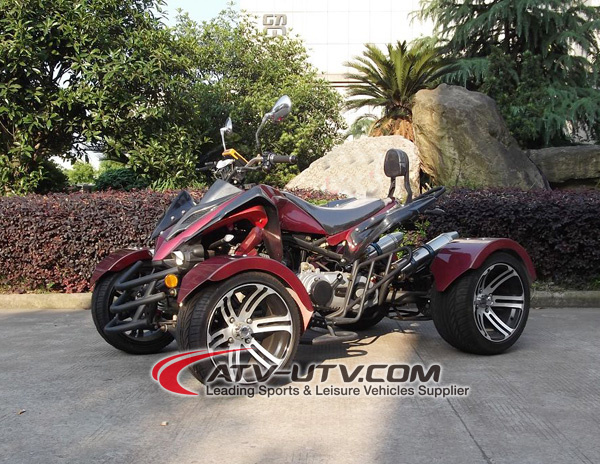

ATVCE/EEC Approved 14 Inch aluminium wheels 300CC ATV
AT3001
Key Specifications:
Wheel number: 4
Piston displacement: 300cc CVT
Engine type: Single cylinder, water-cooled
Starting system: Electric
Fuel tank capacity: 8L
Drive train: Chain
Ignition method: CDI
Max. Power 13.0kw/6, 500rpm
Max. Torque: 20.5N. M/5, 000rpm
Brakes: (Front/Rear)Disc/Disc
Transmission: Automatic CVT, R-N-F, reverse gear, chain
Battery spec: 12V, 9AH
Front suspension detail: Double A x swing arm,: Air chamber shock absorbers
Rear suspension detail: Divided ballonet absorber
Wheel side: Front: 235x30-14, rear: 270x30-14
Vehicle dimension: 198x129x100cm
Wheel base: 142cm
Seat height from ground: 74cm
Min. Ground clearance: 80mm
Loading capacity: 370kgs
Package: Iron cage with carton outside
Net weight: 229kgs
Gross weight: 252kgs
Carton size: 180x112x74cm/1pc
Container: 18pcs/20', 39pcs/40'HQC
