Home Zhejiang Grimax Technology Co., Ltd. CE Approved Light Weight Electric Mobility Scooter

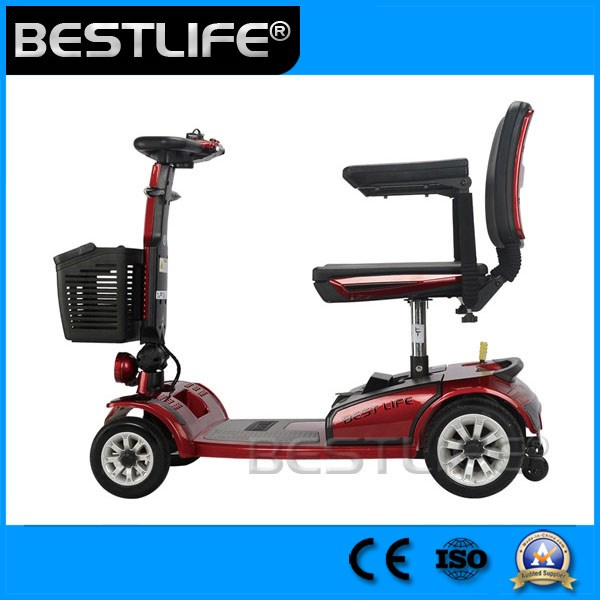

CE Approved Light Weight Electric Mobility Scooter

CE Approved Light Weight Electric Mobility Scooter
Price: US $ 600-650/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 8/Piece
Pay Type: L/C,T/T,Paypal,Western Union

Specifications

Prod Model: Mobility Scooter (DW. AC-01)
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Title: CE Approved Light Weight Electric Mobility Scooter
Colors: Silver, Red, Blue
Max Speed: 9.8km/H (6.1mph)
Driving Distance: 28km
Charge Time: 8-12 Hours
Turning Radius: 125mm
Seat Height: 550mm (±30mm)
Dimensions (Mm): 112*54*94
Motor: 24V, 200W
Controller: Curtis Controller 24V/40A
Load Capacity: 100-200kg
Climbing Capability: 12??
Accessories: Basket
Certification: CE
Folded: Folded
Voltage: 24V

Product Description

CE Approved Light Weight Electric Mobility Scooter

Curtis® controller and control panel from USA
Molex® plug from USA and UL approved cables
Hexin® tyres from Taiwan
Maintenance-free batteries
Seat: 360° adjustable, height adjustable

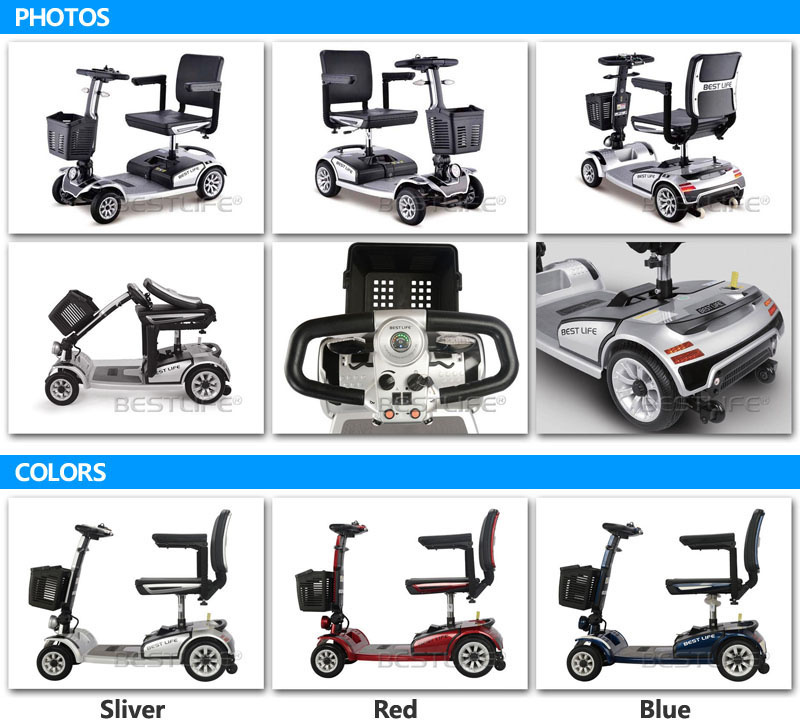

ColorSilver, red, blue
Max speed9.8 km/h (6.1MPH)
Driving distance28 km per full charge
Charge time8-12 hours
Turning radius125 mm
Ground clearance6.8 mm
Seat height550 mm (±30 mm)
Dimensions (cm)112*54*94
Packing size (cm)117*58*52
Climb degree12°
Tire diameterFront:19.3 mm rear:23.3 mm
Max loading117.93kg/260LBS
Motor24V, 200W
ControllerCurtis® controller 24V/40A
SeatFoldable, cover by PU material, and adjust 360 degree
G.W./N.W.64kg / 56kg
Basket load ability6.8kg
Charger24V 2.5A; Split-type, wider band, universal.110V-240V
BatteryAcid batteries, 12V/20Ah *2, Maintenance-free battery
Battery boxSplit-type box, independent charge
LightsLED head light, LED turn light, LED tail light, LED emergency light, Horn
ProtectorsOverload protector and low voltage protector
Control panelMade from Curtis® in USA
CablePulg from Molex® in USA, cable with UL certification
WheelPU material, solid wheel, made from Hexin® in Taiwan
Brake systemElectron brake systems
