Specifications
Prod Model: |
46AT2502-A1301 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Overall Size: |
2130 X 1200 X 1200mm |
Wheel Number: |
3 |
Piston Displacement: |
200cc |
Fuel Tank: |
3.0 Liters |
Fuel Type: |
Unleaded Gasoline Above No.90 |
Starting System: |
Cdi Electric |
Battery: |
12V.9ah |
Drive Train: |
Chain |
Rating Power: |
11kw7500rpm |
Max. Torque: |
18.5n.M/6000rpm |
Transmission System: |
Chain Drive |
Transmission Type: |
Automatic |
Certification: |
DOT |
Engine Type: |
4 Stroke |
Fuel: |
Gas / Diesel |
Displacement: |
200CC |
Structure: |
Without Door |
Maximum Speed: |
>75 km/h |
Brake Type: |
Disc Brake |
Product Description

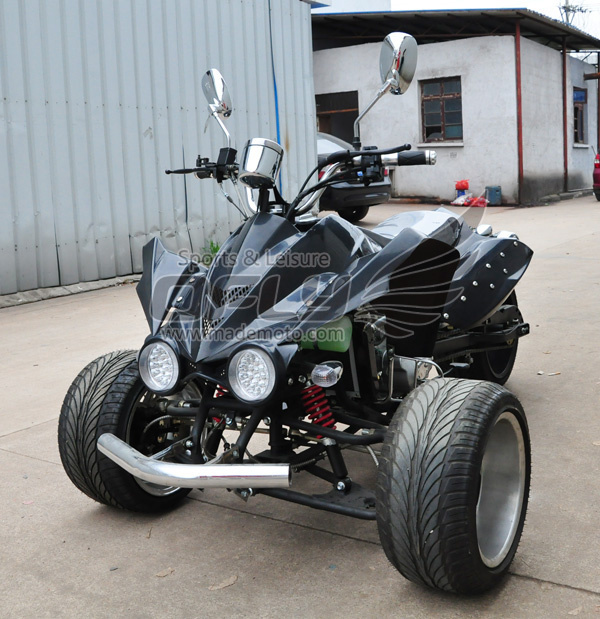

ATV
CE Approved 200CC Water Cooling Engine ATV with three wheels
AT2502-A
Key Specifications:
1. Overall size: 2130 x 1200 x 1200mm
2. Wheel number: 3
3. Piston displacement: 200cc
4. Fuel tank: 3.0 liters
5. Fuel type: Unleaded gasoline above No. 90
6. Engine type: Single cylinder, 4 stroke, water Cooling, Double Wishbones Suspension, manually operated clutch
7. Starting system: CDI electric
8. Battery: 12V. 9AH
9. Drive train: Chain
10. Rating power: 11kw7500rpm
11. Max. Torque: 18.5N. M/6000rpm
12. Brake(Front/Rear): Front Double disk brake/ Rear Single disc brake
13. Wheel size: Front: 235/30R12, rear: 235/30R14
14. Minimum ground clearance: 160mm
15. Max. Load: 100kg
16. Max. Speed: 80km/h,
17. Wheelbase: 1480mm
18. Electric spark plug: A7RTC
19. Exhaust pipe: Single/double
20. Wheel hub material: Iron/Aluminum
21. Shock absorption: Front the spring /Rear the spring
22. Seat height: 700mm
23. Compression ratio: 10: 1
24. Gearshift method: Stamped on the gear
25. Lubrication: Combined Pressure and Splashing
Package: Iron cage with carton outside
26. Net weight: 158kgs/348lbs
27. Gross weight: 180kgs/396lbs
28. Carton size: 2070x1220x850mm/1pc
29. Container: 12pcs/20', 32pcs/40'HQ
Special Features:
L Chain Driving power Transmission
L Powerful water cooling engine
L Before hand brake back foot on the brakes
Minimum Order Quantity: 1pc
