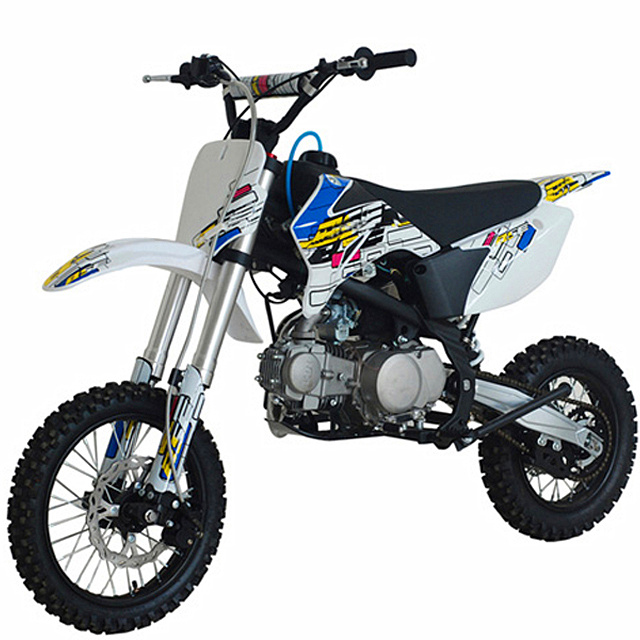

CE Approved 125cc Dirt Bike (DMD125-06)
| Price: | US $ 359.6-449.8/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 30/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | DMD125-06 |
|---|---|
| Markets: | South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Starting System: | Kick System |
| Engine: | 4 Stroke |
| Condition: | New |
| Fuel: | Gas / Diesel |
| Cylinder Quantity: | 1 |
| Certification: | CE |
| Tank Capacity: | 3.4L |
| Seat High: | 32in/810mm |
| Displacement: | 125cc |
Product Description
DMD125-06 TTR110 STYLE PLASTICS DMA125-06 WAS TOTALLY DESIGNED FOR OFF ROAD PURPOSE. IT WAS MADE ACCORDING TO TTR110 PLASTICS AND FUEL TANK, POWERED BY 125CC ENGINE, KICK START AT NUETROL GEAR. HIGH STRENGTHENED 3-SPAR AND FORGED STEEL CRADLE FRAME, SOLID SWING ARM WITH KNIFE SHAPE LOGO. MARZZOCHI STYLE DESIGN UP-SIDE-DOWN FRONT FORK, 45/48-735MM SIZE, LONG TRAVEL REAR SHOCK. 14IN AND 12IN FRONT AND REAR WHEEL WITH KNOBBY TIRE. ENGINE Engine type: 125CC, single cyclinder, 4-stroke, air cooled Bore X Stroke: 54x54mm Compression Ratio: 9.2:1 Max power 6.5kw/7500rpm Min Fuel Consumption <=367g/KW.H Max torquer: 8.0N.m/ 5000rpm Transmission system All up gear, N-1-2-3-4 lgnition mode CDI electronic ignition Clutch Manual, wet multiple Carburetor KF PZ22 CHASSIS Frame High strengthened duralable steel central cradle, 2-spar steel main body Swing arm: Heavy duty steel swing arm Suspension system Front fork:735mm length up-side-down suspenssion, non-adjustable Rear shock: 325mm length high performance, non-adjustable Brake system Hydraulic disc brake, special designed disc for sufficient brake, disc size: front: 190mm, rear: 190m CAPACITY Maximum load 187lb/(85kgs) Tank Capacity 0.9gal(us)/(3.4L) Engine and Rear sprocket 16/39T, 420# Chains. DIMENSIONS Dimensions(L*W*H) 1630mm*760mm*1090mm G.W/N.W 154lb/143lb(70kgs/65kgs) Carton size 1620mm*385mm*735mm Seat Height 32in/810mm Wheel base 48in/1215mm Ground Clearance 11.4in/290mm Rim Size Front 1.40-14/ Rear 1.85-12 Tire size Front/Rear: 60/100-14 80/100-12 Knobby tire LOADING 40'HQ 150Pcs 40'FT 129Pcs 20'FT 54Pcs
China Off Road King Group Co., Ltd is the leading professional supplier of ATVs, Dirt Bikes, Off Road Buggy, UTV, E-bikes, Gasoline Bikes, Snowmobiles, Scooters, E-Scooter and other products in China for over 10 years.
With our strong R & D and our custoemer's valuable ideas, we keep developing and introducing new function and new products to the market.
With extensive QC control system from incoming parts checking, middle of assembly inspection to the final product testing, our products are unparalled in quality.
With our continuous quality improvement and prompt after-sale service, We have grown into a reputable supplier for many customers from US, Europe, Astralia, Asia, Africa, and so on.
Our factory is conveniently located just 30 minutes west of Hangzhou, Zhejiang. It is less than an hour train ride between Shanghai and Hangzhou with frequent high speed train service. We sincerely invite you to come and visit our factory.
