Home Wiztem Industry Company Limited CE Approved 12 Inch Alloy Wheel Cheap ATV

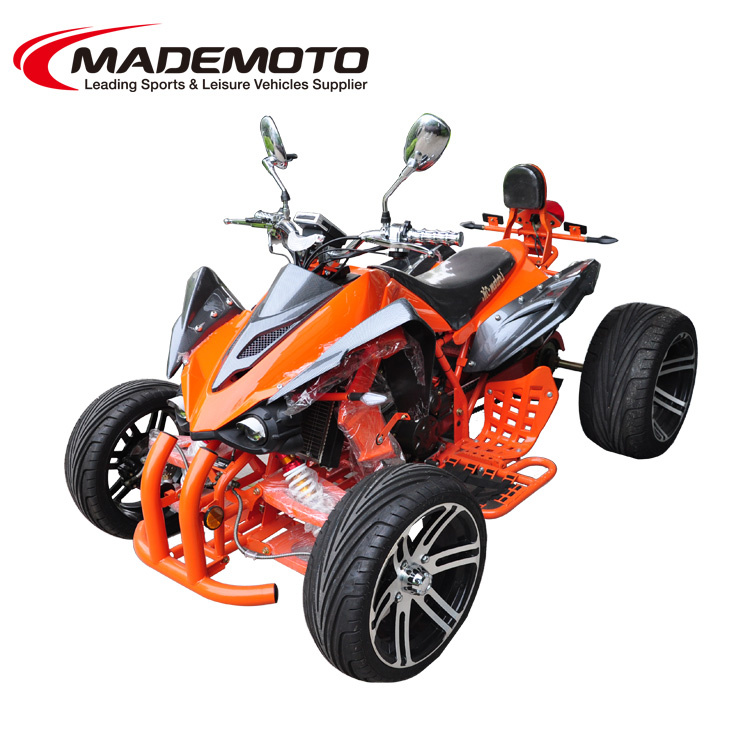

CE Approved 12 Inch Alloy Wheel Cheap ATV
| Price: | US $ 1355.65/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 5/Piece |
| Pay Type: | T/T,Paypal,Western Union |
Specifications
| Prod Model: | AT2001-A |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Starting System: | Electric |
| Fuel Tank Capacityl: | 8L |
| Ignition Method: | Cdi |
| Max.Power: | 13.0kw/7,500rpm |
| Max.Torque: | 17.5n.M/5,000rpm |
| Front Suspension Detail: | Double a X Swing Arm;Air C |
| Rear Suspension Detail: | Divided Ballonet Absorber |
| Vehicle Dimension: | 195X118X110cm |
| Wheel Side: Front: | 185X30-14, Rear: 270X30-14 |
| Wheel Base: | 140cm |
| Transmission System: | Chain Drive |
| Transmission Type: | Automatic |
| Certification: | CE |
| Engine Type: | 4 Stroke |
| Fuel: | Gas / Diesel |
| Displacement: | 200CC |
| Structure: | Without Door |
| Maximum Speed: | 50-75 km/h |
| Brake Type: | Disc Brake |
Product Description
ATVCE Approved 12 inch alloy wheel 200CC ATV Equipped with Powerful water Cooling Engine
AT2001-A
Key Specifications:
1. Wheel number: 4
2. Piston displacement: 200cc
3. Engine type: Single cylinder, water-cooled
4. Starting system: Electric
5. Fuel tank capacity: 8L
6. Drive train: Chain
7. Ignition method: CDI
8. Max. Power 13.0kw/7, 500rpm
9. Max. Torque: 17.5N. M/5, 000rpm
10. Brakes: (Front/Rear)Disc/Disc
11. Transmission: Manual clutch, 4-speed, reverse gear, chain
12. Battery spec: 12V, 9AH
13. Front suspension detail: Double A x swing arm; Air chamber shock absorber
14. Rear suspension detail: Divided ballonet absorber
15. Wheel side: Front: 185x30-14, rear: 270x30-14
16. Vehicle dimension: 195x118x110cm
17. Wheel base: 140cm
18. Seat height from ground: 67cm
19. Min. Ground clearance: 80mm
20. Loading capacity: 370kgs
Package: Iron cage with carton outside
21. Net weight: 190kgs
22. Gross weight: 220kgs
23. Carton size: 170x112x75cm/1pc
24. Container: 18pcs/20', 42pcs/40'HQ
