Specifications
Prod Model: |
DG-LSV2 |
Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Dimension: |
2440*1230*1860 Mm |
Turning Radius: |
3.5 M |
Carrying Capacity: |
360 Kgs |
Chassis: |
Steel |
Net Weight: |
600 Kg(Without Battery) |
Transmission Type: |
Automatic |
Engine Type: |
2 Stroke |
Structure: |
Without Door |
Transmission System: |
Shaft Drive |
Fuel: |
Electric |
Brake Type: |
Drum Brake |
Maximum Speed: |
<50 km/h |
Power: |
>1000W |
Certification: |
ISO9001 |
Condition: |
New |
Brand: |
Marshell |
Product Description

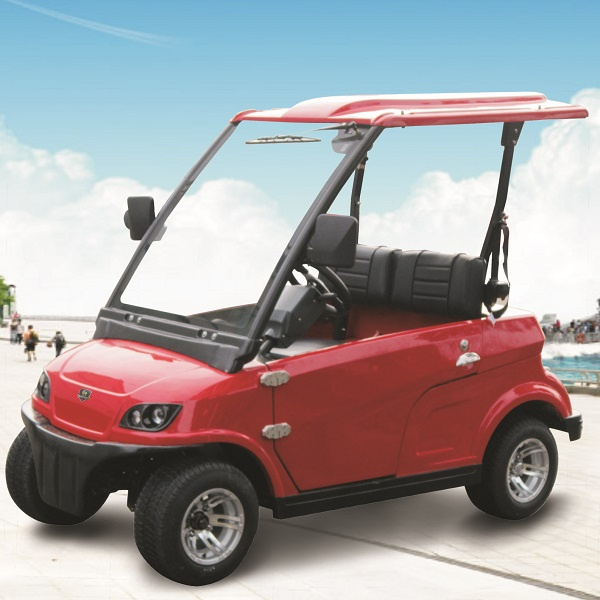

ce and eec approved electric street legal utv (DG-LSV2)
street legal utv features:
1. Good aftersale-service, as most parts are manufactured by ourselves;
2. CE certificate for whole carts and for main parts also pass EEC,CE, UL, SAA for different carts;
3. Import main parts: US battery (From USA) and Delta-Q chargers(From Canada),Curtis Controller(From USA);
4. Brake system: Rear wheel Mechanical Drum Brake;
5. Option parts: Full enclosure weather curtains; Split Windshield; 10''Alloy rim and tyre; Caddycooler; Rear&Side mirror; Different colors and option parts;
6. Good hill climbing ability, the system allows you to customize the car to fit your course;
7. Smart steering system, easy to make forward and backward;
8. Good climbing ablity and can park easily on Hills;
9. Can be easily to be modified to Utility carts.
electric street legal utv specifications:
Model | DG-LSV2 |
Passenger Capacity | 2 |
Power supply |
|
Battery | 8V170AH*6 |
Motor | DC 48V/4KW |
Controller | Curtis 48V400A |
Charger | 48V18A,Full Automatic Effcientcy Pulse charger |
Performance |
|
Max. Speed | 40km/h |
Max.travelling range | 80km |
Climbing capactity | 30% |
Brake Range | 2.5m |
Minmum turning radius | 3.5m |
Gross Weight | 600kg |
Carrying capacity | 200kg |
Chassis |
|
Steering | Self Compensating "Rack & Pinion" Steering |
brakes | Rear Wheel Mechanical Drum Brake, with Hand brake |
tire | 205/50 R10 |
Ground clearance | 90mm |
Overall dimension(L*w*h) | 2440*1230*1860mm |
Qty per container | 8pcs/20FT 17pcs/40FT 17pcs/40HQ |
Standard parts | Side mirror |
Optional parts | CD player, Seat belts, Trojan Battery |
Who is Marshell?
Marshell was founded in 2002 with two business units, Electric Vehicle and Electronics. The core business of Marshell Electric Vehicle is in the research, development and manufacture of low-speed electric vehicles including mobility scooters, golf carts, resort and utility vehicles, etc.
Whereas, Marshell Electronics, of automotive and home power products including battery charges, battery maintainers, power inverters, jump starters, portable power domes, solar power extenders, etc.
How do you benefit?
Working with Marshell, you can enjoy considerable benefits with added values:
The full spectrum of electric vehicles, automotive and home power products of the highest possible standards of quality and performance at your fingertips to withstand the challenge of the market.
Great flexibility of production capacity enables you to fast meet the market change and demand with our two ISO9001:2000 certified factories, strategically located in Zhaoqing and Shanghai with a total of 210,000 m2 of fully equipped workshops.
Cost down on your existing products to regain your competitiveness and market shares with our proven quality and competitive price - we have been serving leading brands in OEM and ODM with products penetrated the global market.
Full service and support on product upgrade and new product engineering, fast to market at minimized cost with our engineering team of more than 100 engineers for OEM and ODM projects.
