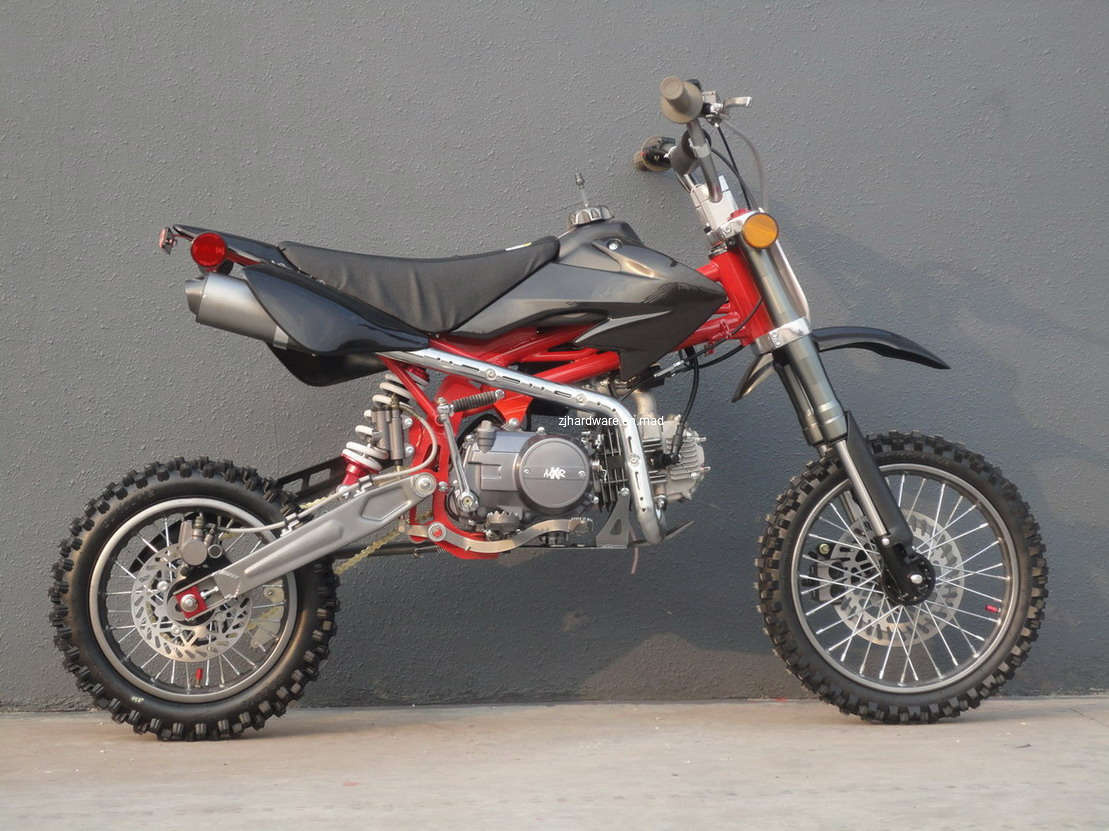

Home Zhejiang Hardware Industrial Co., Ltd. Black+Red Frame Hot (HD-DB01)
Specifications
| Prod Model: | HD-DB01 |
|---|---|
| Certification: | CE |
| Starting System: | Kick Start and Electric Start |
| Engine: | 4 Stroke |
| Displacement: | 51-125CC |
Product Description
Model No.: HD-dB01Specification
1. Engine: Good 125CC, Single Cylinder, 4 Strokes, Air Cooled, 4 Up Gears
2. Kick Start, Manual Clutch,
3. MIKUNI VM-22 Carb
4. Good Performance Upside Down 630× 45× 48mm Front Fork
5. Good Performance 295mm× Φ 12mm Rear Shock Absorber
6. Newest Design Frame For CRF50 Plastic Kit
7. Newest Design Heavy Duty Steel Swing Arm
8. New style popular Aluminum muffler
9. Aluminum 45x48mm Triple Clamp
10. Aluminum Adjustable Brake & Clutch Lever
12. Aluminum Handle Bar
13. Good Comfortable grips
14. Good Comfortable Seat
15. Steel Engine Bottom Cover
16. Steel Brake Pedal
17. Heavy Duty Footrest
18. Steel Rim(Front /Rear): 1.40× 14'/1.85× 12', with Φ 15mm axle
19. Knobby Tire (Front/Rear): 60/100-14'/ 80/100-12'
20. Front & Rear Hydraulic Disc Brake, With Φ 190mm Circle Brake Disc
21. New Style Rear Sprocket 428*76*41teeth
22. KMC Chain 428
23. Alloy Chain AdjusterΦ 15mm
24. G. W. /N. W.: 70/65 KGS
25. Seat High: 780mm
26. Wheelbase: 1130mm
27. Dimension: 1580x770x1130mm
28. Carton Size: 1445x355x710mm
29. Container Capability: 72PCS/20ft, 147PCS/40ft, 170PCS/40HQ
Available colors: Red, yellow, blue, green, black
