Bicycle Engine Kit (F50, F60, F80)
| Price: | US $ 1-100units |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 40units |
| Pay Type: | L/C,T/T,Western Union,Paypal |
| Prod Model: | F50, F60, F80 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| F50: | 2stroke |
| F60: | 2stroke |
| F80: | 2stroke |
| All New: | Gasoline |
| High Quality: | All Spare Parts Available |
| Type: | Motorcycle Engine |
| Certification: | ISO9001: 2000 |
| Material: | Alloy |
Product Description
Specification:Model No. F50, F60, F80 bicycle motor

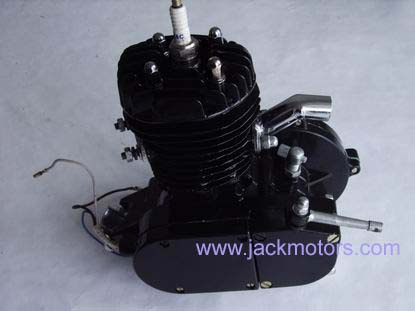

1. Engine type: Single cylinder, air-cooled, 2-stroke
2. Type of fuel mix: 16: 1/20: 1
3. Displacement: 48CC, 60CC, 70/80CC
4. Ignition: CDI Ignition
5. Transmission: Steel chain
5. Max. Power(kw/rpm): F50: 1.6/6000, F60: 2.5/6000, F80: 2.94/6500
6. Fuel consumption: 1.2 L/100km
7. Maximum speed: 40km/h
8. Fuel tank: 2 L
9. Bearing: Needle bearing for conrod
Net weight: 8kgs
Gross weight: 11kgs
Packing size: 42cmx42cmx17cm
Packing: One set in one carton, with instruction manual in English or in Spanish.
Option
1.round head engine
2.square head engine
3.black engine
4.engine head with tilted spark plug
5.chrome plated fuel tank or 2.5L black tank
6.black muffler or special muffler
7.bigger fix point for bigger bike frame tube.

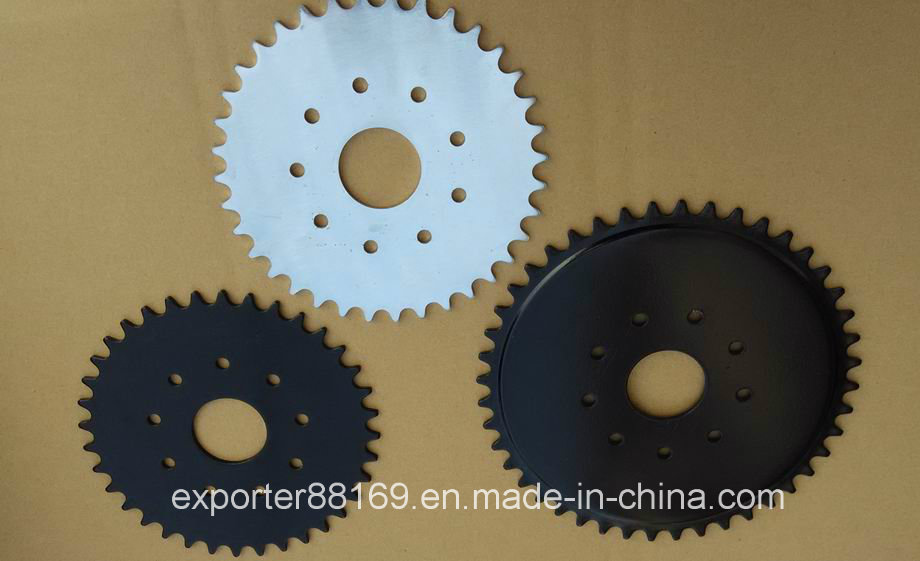

8.36T ,44T,48T,56T sprocket.
Everything is ready to be fixed on v frame bicycle. Please send your company profile and contact info to us for more detail and price.

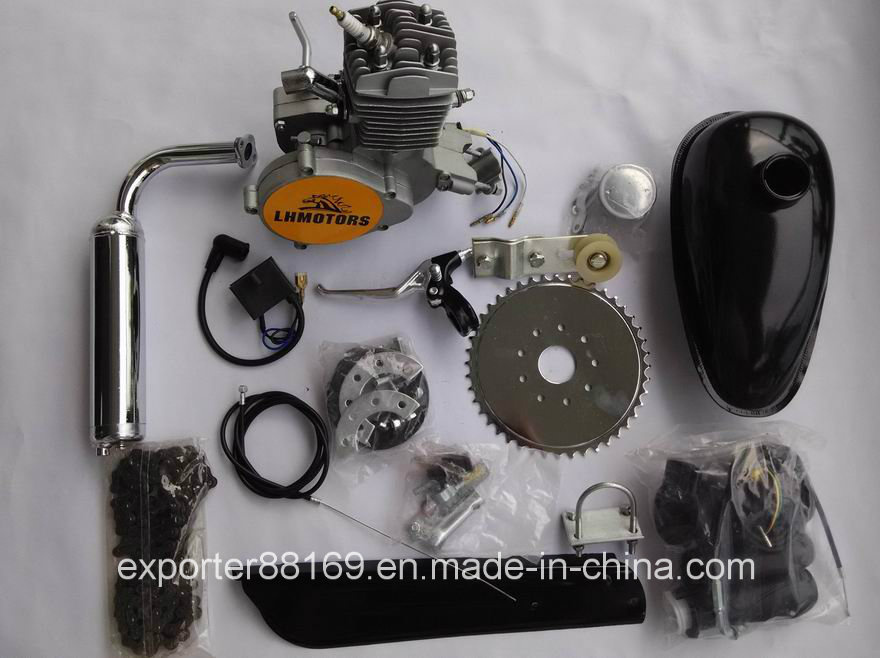

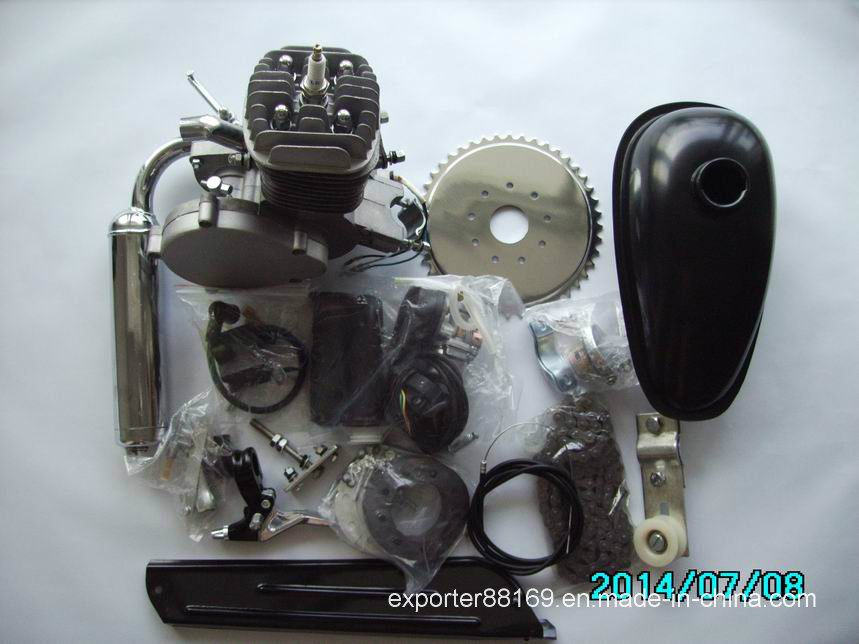

| Item no. | Description | Quantity | Item no. | Description | Quantity |
| 1 | Engine assy(silver) | 1 | 12 | Sprocket(9holes, 44teeth) | 1 |
| 2 | Black fuel tank | 1 | 13 | CDI ignitor | 1 |
| 3 | carburetor | 1 | 14 | Clamping rubber assy | 1 |
| 4 | Chromed exhaust muffler | 1 | 15 | Pulley assy | 1 |
| 5 | Clip, exhaust pipe | 1 | 16 | Strong lock nut | 1 |
| 6 | Tank valve | 1 | 17 | alloy push button clutch lever | 1 |
| 7 | 415 heavy duty chain | 1 | 18 | Clutch cable | 1 |
| 8 | Clip, chain cover | 1 | 19 | throttle cable | 1 |
| 9 | Chain protect cover | 1 | 20 | Screw tool | 1 |
| 10 | Fuel hose | 1 | 21 | Instruction manual(Eng. or Spanish) | 1 |
| 11 | Throttle with kill switch | 1 | 22 | 3 hole mounting adaptor(bolt, nut) | 1 |
