Specifications
Prod Model: |
ES3506 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Stable Quality: |
Stable Quality Over-Load Protection |
Certificate: |
EEC |
Rate Power: |
350W±10% |
Controller: |
36V/350W |
Transmission: |
Shaft Drive Transmission |
Width Of Handle Bar: |
60cm |
Handle Bar Ground Clearance: |
108cm |
Footboard Ground Clearance: |
20cm |
Cushion Ground Clearance: |
78cm |
Available Colors: |
Black, Blue, Silver, Red, Yellow |
Wheel Hub: |
Alloy Hubs |
Voltage Of Battery: |
48V |
Folded: |
Folded |
Motor: |
Brushless |
Battery Type: |
Lead-acid Battery |
Frame Material: |
Steel |
Power: |
351-500W |
Maximum Loading Capacity: |
75-120kg |
Running Distance: |
<45KM |
Charging Time: |
8-10h |
Certification: |
EEC |
Wheel Size: |
12" |
Max Speed: |
20-40km/h |
Brake: |
F/R Single Mechanical Disc |
Product Description
Special Features:
EEC type
Over-load protection
Dual max speed preset
Digital speed indication
Long cruising duration
3.0-12 aluminum rims
48V 500W hub brushless motor
36V 350W hub brushless motor
Electric Scooter

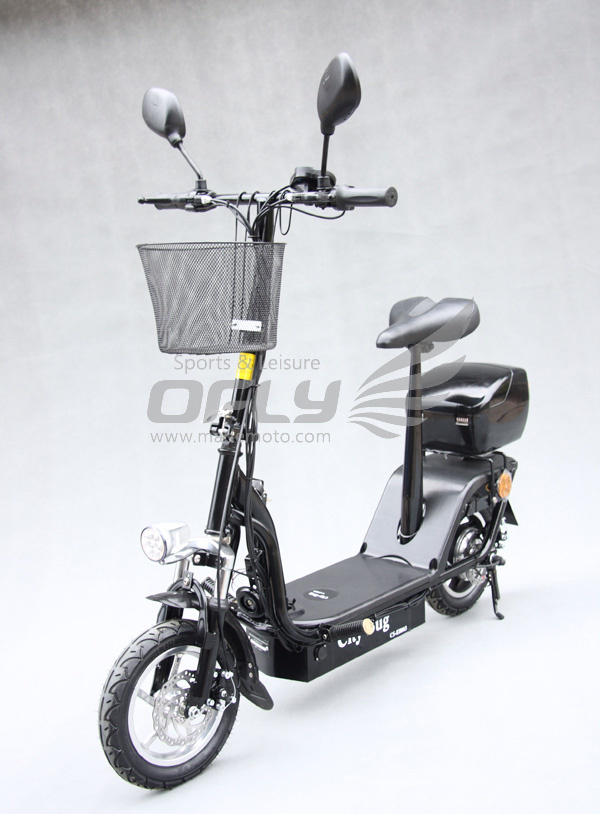

Best Selling EEC Type New Foldable 350W Electric Scooter with over-load protection
ES3506-A
Key Specifications
1. Product size: 1300X510X1080mm
2. Motor: 36V 350W hub brushless motor
3. Battery: 36V 12AH
4. Rate power: 350W± 10%
5. Controller: 36V/350W
6. Charge Requirement: AC80-240V 50-60Hz 36V/MAX1.6A
7. Front/Rear tires: 12½ X3.0
8. Break style: F/R single mechanical disc/φ 140
9. Max speed: 18-23km/h
10. Distance per charge: 25-30km
11. Charging time: 8-9hours
12. Transmission: Shaft drive transmission
13. Width of handle bar: 60cm
14. Handle bar ground clearance: 108cm
15. Footboard ground clearance: 20cm
16. Cushion ground clearance: 78cm
17. Available colors: Black, blue, silver, red, yellow, orange, optional
Package: Carton Packing
18. Net weight: 36.5kgs/80.5lbs
19. Gross weight: 42.0kgs/92.6lbs
20. Carton size: 114X34X53cm/1PC
21. Container: 136PCS/20', 282PCS/40', 331PCS/40'HQ
Special Features:
EEC type
Over-load protection
Dual max speed preset
Digital speed indication
Long cruising duration
3.0-12 aluminum rims
36V 350W hub brushless motor
ES3506-B
Key Specifications
1. Product size: 1300X510X1080mm
2. Motor: 48V 500W hub brushless motor
3. Battery: 48V 12AH
4. Rate power: 500W± 10%
5. Controller: 48V/500W
6. Charge Requirement: AC80-240V 50-60Hz 48V/MAX1.8A
7. Front/Rear tires: 12½ X3.0
8. Break style: F/R single mechanical disc/φ 140
9. Max speed: 18-23km/h
10. Distance per charge: 25-30km
11. Charging time: 6-8hours
12. Transmission: Shaft drive transmission
13. Width of handle bar: 60cm
14. Handle bar ground clearance: 108cm
15. Footboard ground clearance: 20cm
16. Cushion ground clearance: 78cm
17. Available colors: Black, blue, silver, red, yellow, orange, optional
Package: Carton Packing
18. Net weight: 36.5kgs/80.5lbs
19. Gross weight: 42.0kgs/92.6lbs
20. Carton size: 114X34X53cm/1PC
21. Container: 136PCS/20', 282PCS/40', 331PCS/40'HQ
Special Features:
EEC type
Over-load protection
Dual max speed preset
Digital speed indication
Long cruising duration
3.0-12 aluminum rims
48V 500W hub brushless motor
