Specifications
Prod Model: |
AT1501 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Size: |
1660*1050*1110 |
Max Power: |
8.5/7500(Kw/Rpm) |
Max Torque: |
8.3/6000(Nm/Rpm) |
Starting:C: |
Electric |
Ignition: |
C.D.I |
Lubrication: |
Pressure and Splash |
Compression Ratio: |
10:1 |
Fuel Capacity: |
4(L) |
Capacity Weight: |
150(Kg) |
Front/Rear Tire: |
21*7-8; 21*10-8 |
Transmission System: |
Chain Drive |
Transmission Type: |
Automatic |
Certification: |
CE |
Engine Type: |
4 Stroke |
Fuel: |
Gas / Diesel |
Displacement: |
150CC |
Structure: |
Without Door |
Maximum Speed: |
50-75 km/h |
Brake Type: |
Disc Brake |
Product Description

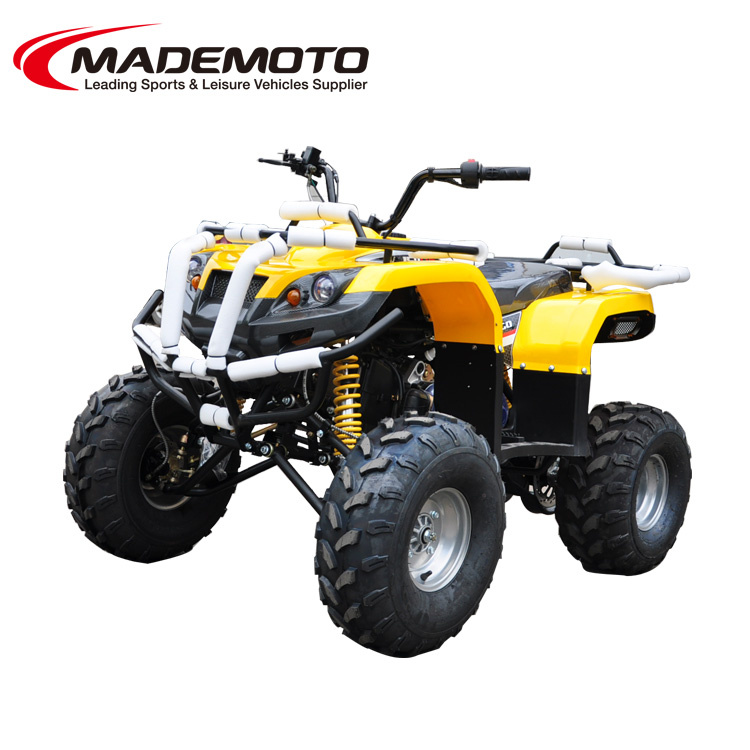

ATV
New 150cc ATV with front and rear Hydraulic disc
AT1501
Key Specifications:
1. Engine Type: 4-stroke, 1-cylinder, air-cooled
2. Product size: 1660*1050*1110
3. Displacement: 150cc
4. Max Power: 8.5/7500(kw/rpm)
5. Max Torque: 8.3/6000(Nm/rpm)
6. Starting: Electric
7. Ignition: C. D. I
8. Lubrication: Pressure and Splash
9. Compression Ratio: 10: 1
10. Transmission: Automatic with reverse
11. Final Drive: 2WD, chain drive system
12. Front/Rear Brake: Front: Hydraulic disc; Rear: Hydraulic disc
13. Max Speed: 65(Km/h)
14. Fuel Capacity: 4(L)
15. Capacity Weight: 150(kg)
16. Battery: 12V9Ah
17. Wheel Base: 1105(mm)
18. Front/Rear Tire: 21*7-8; 21*10-8
19. Seat Height: 860kg
20. Mini Ground Clearance: 125(mm)
21. Color: Black, red, blue, yellow, camo(+$18.85), painting red(+$15)
Package: Iron cage with carton outside
22. Net Weight: 150(kgs)
23. Gross Weight: 184(kgs)
24. Carton Size: 1480*850*850
25. Container capacity: 20pcs/20GP; 63pcs/40'HQ
