Prod Model: |
ESIII-19 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
6 Colors Available |
Name: |
Evo Electric Scooter Manufacturers |
Product Description

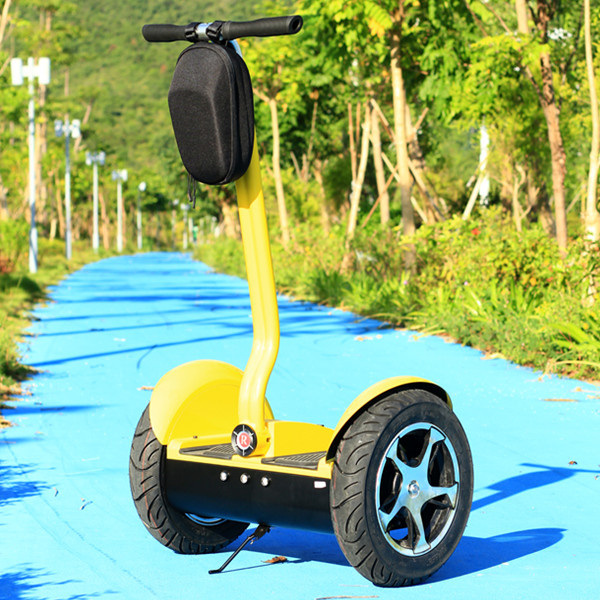

Two Wheel Balance Mini Electric Chariot Scooter Mobility Scooter
I. About the Escooter
The product is a fully open, all electric scooter with innovative design and sensible mind which can easily figure out what you think about, bringing you the unprecedented driving experience you even experienced.
Working principle of EScooter
The real innovation in this escooter, though, is that it can stay upright, all by itself. The driver does not need to balance it at all. This is achieved with the innovative use of 5 groups of gyroscope under the substructure where it also lies the working principle of this electric scooter. It simply follows where your gravity center goes. With an integrated circuit PCB board inside to control the signal flow, ESII, style scooter moves forward as you lean forward and slows down as you lean backward or lower your gravity center. Braking device is totally unnecessary in this scooter. This scooter can even turn 360 degree with 0 radius, making it flexible under narrow space.
II About US
With three years of Experience, advanced tech and skilled workforce, we are confident to supply our scooters direct to you at competitive prices with no middle man.
We offer an extensive range of stylish scooter designs in eye-catching colours. There's bound to be a scooter to get you whizzing off down the road. Don't forget to check out our latest three model ESII and ESIII and ESOI(off road).
OEM service provided, welcome to consult for more information.
III. Application Field--Where is Escooter can be used?
This Mobility scooter can be used for leasing, tour, patrol.
It has wide application as below:
Police, security personnel patrol
Personal travel, amusement and short-distance travel
Renting in tourist attractions, exhibition hall, hotel, parks, and amusements playgrounds
Intelligent robot moving platform
Industrial zone, factory, warehouse personal transport
IV Join US
Distributors and dealers are wanted. No matter where you are from, fully support will be provided to you and make your business fly. Let us grow together!
OEM service provided, welcome to consult for more information.
V FAQ
1. How to order?
Simply inquiry us by your wanted model. With deals made, we can send the product to your door through DHL, FedEx, UPS, etc.
2. How does EScooter move? How does it balance?
Escooter senses the lean of the rider with the assistance of two-dimensional inertial navigation system and two accelerometers that sense the angle of the E-scooter with respect to gravity at
100 times per second. It balances the rider by applying forces to the ground in the direction of the lean. If you lean forward the Escooter applies motor torque to the wheel to push it forward, bring you upright and balance you. When you lean back, it applies reverse torque to slow you down and balance you accordingly.
Feature of new model:
1. New steering mechanism, more stable and comfortable, faster response
2. Updated process motherboard, more safe and easy to be controlled
3. Waterproof
4. Advanced design for steer and handle, beauty and fashion
5. More exquisite and light steering mechanism, more flexible turning
6. New model pedal with 4 detecting switch. Driver will not fall down in driving.
7. Adjusting big power importing motor. Max power of single wheel can achieve 800W, easy to climb continuously 30 degree slope.
8. Siren alarm, reminding the statue of scooter
9. GPS tracking is optional
10. High quality wheel with smooth racing tire.
Electric Chariot Vertical Balance Scooter, Speed up electric scooter, Self-Balancing Vehicles
Performance Parameter of mobility scooter
ESIII-pecifications |
Gross Weight/Net Weight | 45kg/53kg |
Dimension/Size | 68*43*43 cm |
Max. cruise speed | 18km/h |
Max. load | 125kg |
Max. mileage | 30-35km |
Max. climb capability | 30 degree |
Min. turning radius | 0 degree |
Charging time | 6-8h |
Battery | PB, 24V, 28Ah ( three lead acid battery) |
Voltage | 100v-240v |
Max. power | 1600w (2*800w/pc) |
Life of battery | 1-3 years |
Tire | 17inches/43cm vacuum |
Wheel | 12inches/26cm,Superior integrated aluminum magnesium alloy |
Height of handle | 800-1100 mm adjustable |
Height of footplate | 10 inches /26cm |
Specifications of footplate | 11.5*25 inches |
Max. height above ground | 120mm |
Standard pressure | 250kpa |
Colors | 7 colors available |
Certifications | CE, FCC, ROHS |
|
|
Packing Detail of Escooter(ESIII) |
Inner: Carton | Outer: Plywood box |
CTN demission: | 74*48*64cm |
Volume: | 0.23cbm (About 100 PCS per Container (20feet#) |
|
|
Packing list (Standard kits/parts) |
Handle: 1 PC | Key: 2 PCS | User manual: 1 PC | Fender: 2 PCS |
Driving handle: 1 PC | Extra fuse: 4 PCS | Pedal mat: 2 PCS | Tire: 2 PCS |
Battery charger: 1 PC |
|
Shenzhen Xinli Escooter Technology Co., Ltd with more than 1000 square metres factory and more than 400 workers, produces professional high quality two wheel electric scooter. It was founded in 2011. The headquarter is located in Zhonboshangyi Industrial Park, , Bantian, Longgang, Shenzhen.
Quality assurance is extremely important to our company. We have advanced QC and production equipment at our disposal and can provide a consistent high standard for products. Our scooters strictly comply with IQC, IPQC and FQC standards and specifications. Our scooters have been certificated by CE, FCC and ROSH etc. Also we strictly follow the standard of ISO9001. Our scooter has been exported more than 80 countries and areas all over the world, such as Europe (Demark, Germany, Sweden, Poland, France, Italy Russia, etc. ), Africa (South Africa), Southeast Asia (Malaysia, Philippines) and America (USA, Canada and Brazil), Austria & New Zealand.
Our strategic target is to make two-wheel electric chariot scooter an "international brand"We have been developed as a famous manufacturer of two-wheel electric chariot scoter both at home and abroad with R&D, roduction, ales and service integrated. We strive to provide high quality mobility tools for human short travel with sincerity, innovation, responsibility and excellence as our operation principle and environmental protection as our social mission.
At present, we possess several independent intellectual property rights and core technology. With "energy saving, environmental protection"in mind, we have released pure power-driven Escooter series with dynamic balance technology and natural posture control technology, like ESIII and ESOI, which has high safety and reliability. Since its features of small size, flexible operation, pollution and emission free, it has been widely used in personal transportation, public security police, metro deployment, airport customs, large venues, tourist resort, golf field etc, and enjoys great reputation among the world.
By following "scientific management, high quality, excellent service, top reputation"policy, Xinli Escooter keeps improving quality, service and management, thus providing high quality products and best service to customers. Technology changes life, which is also what we are doing. Join Xinli Escooter, join a environmental, comfortable and healthy life!
