Specifications
Prod Model: |
KAA15XLO |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Inner Diameter: |
38.1 Mm |
Outer Diameter: |
47.625 Mm |
Width: |
4.763 Mm |
Weight: |
0.018 Mm |
Rolling Body: |
Ball Bearings |
The Number Of Rows: |
Single |
Outer Dimension: |
Small (',28-55mm) |
Load Direction: |
Radial Bearing |
Material: |
Bearing Steel |
Separated: |
Unseparated |
Product Description
Our company is a professional enterprise engaged in the production of thin-wall bearings. The inner diameters of the bearing sizes range from 20 mm to 1500 mm. There are large number of products such as 6700 series, 6800 series, 6900 series, 160 series, 60 series available in a long term.
We have all kinds of bearing products, for example. Thin-wall deep groove ball bearings, thin-walled angular contact ball bearings, angular four- point contact ball bearings, excavator special bearings.
Precious standard:
The accuracy control level of this series of bearings can be: P0, P5, P6, P4
The vibration and noise control level of the bearings can be Z1V1, Z2V2, Z3V3. These series of bearings can meet all kinds of industrial needs.

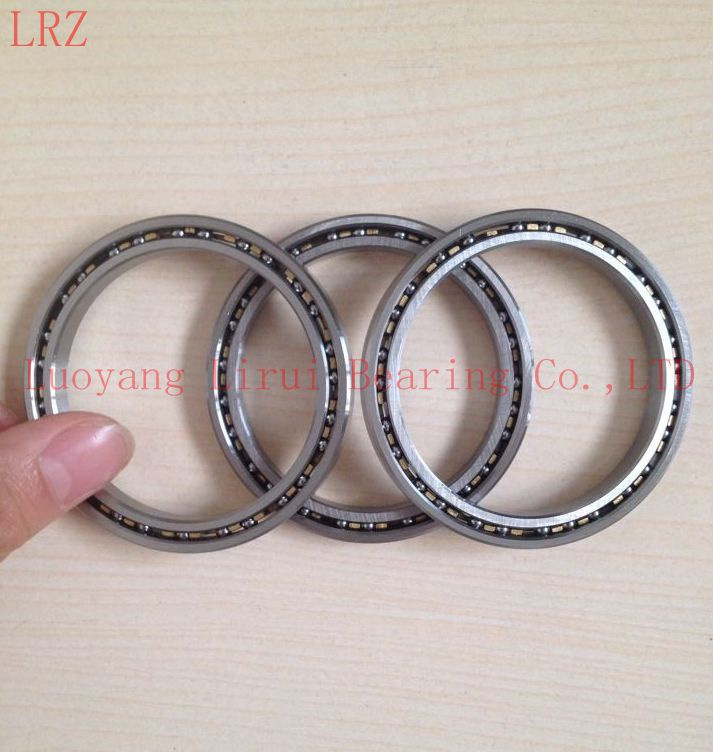

Four-point contact ball bearing can bear radial load and two-way axial load
A single bearing can replace the positive combination or the back combination of angular contact ball bearings.
They apply to pure axial load or synthetic load with larger axial load in it.
Contact Angle (alpha) will be formed when the bearing withstand axial load from any direction, so the ring can always be in contact with the ball in any online points
Main applicable cage: Copper alloy cutting cage
Main use: Aircraft jet engines, gas turbine.
Type | Major dimensions | weight | Rated loading | Limiting speed | equivalent |
d | D | B | radial | thrust |
static | dynamic | static | dynamic | SILVERTHIN |
IN | MM | IN | MM | IN | MM | KG | Co(N) | Cr(N) | Co(N) | Cr(N) | (RMP) |
KAA10XLO | 1 | 25.4 | 1.375 | 34.925 | 0.1875 | 4.763 | 0.014 | 1510 | 1470 | 4310 | 4270 | 16840 | SAA10XLO |
KAA15XLO | 1.5 | 38.1 | 1.875 | 47.625 | 0.1875 | 4.763 | 0.018 | 2140 | 1690 | 6140 | 4890 | 11850 | SAA15XLO |
KA020XPO | 2 | 50.8 | 2.5 | 63.5 | 0.25 | 6.35 | 0.045 | 3510 | 29360 | 10140 | 7700 | 8890 | SA020XPO |
KA025XPO | 2.5 | 63.5 | 3 | 76.2 | 0.25 | 6.35 | 0.059 | 4270 | 2850 | 12370 | 8270 | 7270 | SA025XPO |
KA030XPO | 3 | 76.2 | 3.5 | 88.9 | 0.25 | 6.35 | 0.068 | 5070 | 3020 | 14630 | 8810 | 6150 | SA030XPO |
KA035XPO | 3.5 | 88.9 | 4 | 101.6 | 0.25 | 6.35 | 0.082 | 5830 | 3200 | 16860 | 9210 | 5330 | SA035XPO |
KA040XPO | 4 | 101.6 | 4.5 | 114.3 | 0.25 | 6.35 | 0.086 | 6630 | 3340 | 19130 | 9700 | 4710 | SA040XPO |
KA042XPO | 4.25 | 107.95 | 4.75 | 120.65 | 0.25 | 6.35 | 0.091 | 7030 | 3430 | 20240 | 9960 | 4440 | SA042XPO |
KA045XPO | 4.5 | 114.3 | 5 | 127 | 0.25 | 6.35 | 0.1 | 7380 | 3470 | 21400 | 10050 | 4210 | SA045XPO |
KA047XPO | 4.75 | 120.65 | 5.25 | 133.35 | 0.25 | 6.35 | 0.104 | 7780 | 3560 | 22510 | 10280 | 4000 | SA047XPO |
KA050XPO | 5 | 127 | 5.5 | 139.7 | 0.25 | 6.35 | 0.109 | 8180 | 3600 | 23620 | 10500 | 3810 | SA050XPO |
KA055XPO | 5.5 | 139.7 | 6 | 152.4 | 0.25 | 6.35 | 0.113 | 8990 | 3690 | 25890 | 10720 | 3480 | SA055XPO |
KA060XPO | 6 | 152.4 | 6.5 | 165.1 | 0.25 | 6.35 | 0.127 | 9740 | 3830 | 28110 | 11120 | 3200 | SA060XPO |
KA065XPO | 6.5 | 165.1 | 7 | 177.8 | 0.25 | 6.35 | 0.136 | 10540 | 3960 | 30380 | 11480 | 2960 | SA065XPO |
KA070XPO | 7 | 177.8 | 7.5 | 190.5 | 0.25 | 6.35 | 0.141 | 11300 | 4000 | 32650 | 11570 | 2760 | SA070XPO |
KA075XPO | 7.5 | 190.5 | 8 | 203.2 | 0.25 | 6.35 | 0.154 | 12100 | 4090 | 34870 | 11830 | 2580 | SA075XPO |
KA080XPO | 8 | 203.2 | 8.5 | 215.9 | 0.25 | 6.35 | 0.172 | 12860 | 4270 | 37140 | 12320 | 2420 | SA080XPO |
KA090XPO | 9 | 228.6 | 9.5 | 241.3 | 0.25 | 6.35 | 0.2 | 14410 | 4400 | 41640 | 12720 | 2160 | SA090XPO |
KA100XPO | 10 | 254 | 10.5 | 266.7 | 0.25 | 6.35 | 0.227 | 15970 | 4580 | 46130 | 13340 | 1950 | SA100XPO |
KA110XPO | 11 | 279.4 | 11.5 | 292.1 | 0.25 | 6.35 | 0.236 | 17530 | 4770 | 50620 | 13790 | 1780 | SA110XPO |
KA120XPO | 12 | 304.8 | 12.5 | 317.5 | 0.25 | 6.35 | 0.254 | 19080 | 5020 | 55110 | 14230 | 1630 | SA120XPO |
