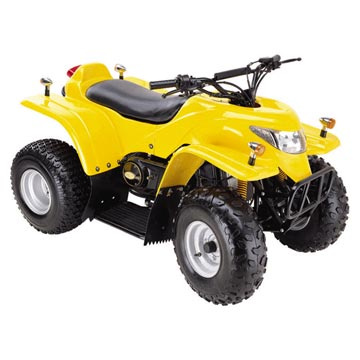

Product Description
Product dimensions: (L x W x H) 1540 x 600 x 500mmWheel base: 1040mm
Min. Ground clearance: 100mm
Dry weight: 140kg
Fr. Tyre size: 19 x 7-8/2.9Psi
Rr. Tyre size: 18 x 9-8/2.09Psi
Fr. /Rr. Break: Drum
Max load capacity: 95kg
Fuel tank capacity: 7.8L
Piston displacement: 107cc
Min. Turning radius: 2400mm
Engine oil capacity: 0.95L
Gear oil capacity: 0.12L
Max speed: 50km/h
Engine model: 1P52FMH
Engine type: Single-cylinder, air-cooled, 4 stroke
Bore x Stroke: 52.4 x 49.5mm
Displacement: 107ml
Compression ratio: 9. 1:1
Power(kw/r/min): 4.5/7000
Max. Torque (N. M/r/min): 6.5/5000
Starting system: Electric, kick
Ignition: CDI
Front suspension: Leading arm
Rear suspension: Monoshock swing arm
Color selections: Red, Yellow, Blue, Green, Black
Packing: Carton dimensions: 1475 x 800 x 800mm
Conveyance: Qty/20'FCL: 27pcs
Qty/40'FCL: 63pcs
Qty/40'HQ: 63pcs
Established in 2004, YongKang Mali vehicle manufacture co., ltd. covers an area of 5, 000 square meters and boasts over 150 high quality management personnel and skilled technicians.
