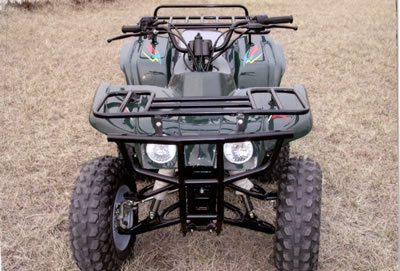

Home Jiangsu Beny Enterprise Co. , Ltd. ATV250-1
Specifications
| Prod Model: | ATV250-1 |
|---|
Product Description
1. Dimension L*W*H: 1680mm+1030mm*1100mm2. Proper Mass of Empty Vehicle: 1700kg
3. Max speed: 60km/h
4. Grad ability: 20°
5. Distance between axles: 1100mm
6. Distance between front wheels: 830mm
7. Distance between rear wheels: 780mm
8. Ground clearance: 150mm
9. Specification of Front Wheel: 21×7-10, 50Kpa
10. Specification of Rear Wheel: 21×9-8, 50Kpa
11. Type of Engine: 253FML
12. Bore*stroke: 53mm×53mm
13. Efficient Capacity: 234ml
14. Rated Power and Rotate Speed: 12. 5KW/8500r/min
15. Max Torque and Rotate Speed: 15N. M/7500r/min
16. Compressing Ratio: 9.2:1
17. Gearshift Model: Four Speed
18. Starting System: Electrical Starting
19. Cooling System: Air Cooling
20. Tank fuel capacity: 7.5L
21. MEASUREMENT (L×W×H): 1680×1120×855mm
22. Gross weight: 190KG
23. 12288; 40HQ
42cps/40HQ
