Product Description

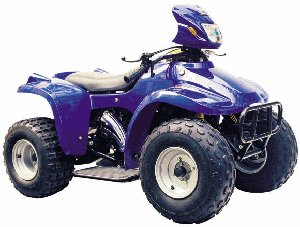

125ATVSPECIFICATION
Engine Type: 4-Strokes, AirCooled
Transmission System: Shaft Drive
Bore x Stroke(mm): 52.4x 49.5
Piston Displacement: 107
Maximum Power(kw/r/min): 5.5/8000
Maximum Torque(N. M. /r/min): 6.5/5750
Starting System: Electric Starter
Transmission: 4-Speed, SemiAutomatic
Seat Height(mm): 670
Min Turning Radius(mm): 2400
Ground Clearance: 100
Brake(Front/Rear): Drum/Drum
Tyre, Fromt: 19X 7-8/2.9Psi
Tyre, Rear: 18X9.5-8/2.9Psi
Ignition Type: C. D. I
Fuel Tank Capacity(L): 7.8
Front Suspension: Leading Arm
Rear Suspension: Monoshock Swing Arm
Parking Brake: Mechanical Lock
Battery: 12V-9Ah
Max Load Capacity(kg): 95
Engine Oil Capacity(L): 0.95
Gear Oil Capacity(L): 0.12
Dry Weight(kg): 130
Rider Capacity: 1 Person
Wheel Base: 1040
Overall Height(mm): 950
Lubrication: AUTO
Overall Length(mm): 1540
Overall Width(mm): 860
Compression Ration: 9.1: 1
Cylinder Arrangement: Single Cylinder
QTY/Container: 20units/20'; 42units/40'; 63units/40'HQ
As a professional manufacturer of ATVs and dirt bicycles, we have accumulated several years of experience in the field. We were founded in 1996 and our company has been expanding rapidly ever since. Our location, the city of Chongqing, indicates the kind of company we are, as it has been dubbed 'China's producing base of motors. '
With our advanced techniques, well-developed production lines and hard-working staff, we are moving ever closer to our goal of superior excellence in our specialized field. Furthermore, our research and development team is devoted to making our products even more dynamic and attractive to our customers and inevitably to final consumers, too.
As the perfect combination of good quality and competitive price, we have spread our products in every corner of China and all over the world. As further evidence of our rich manufacturing experience and trustworthy product quality, we can cite the experiences of about twenty satisfied customers with whom we have established stable business relations. If you would like to join this growing number, we can only encourage you to contact us and begin talks that we hope will see the success of all parties involved. We are looking forward to hearring from you as would like to hasten the knowledge and appreciation of our products all around the world.
Our main products are the following: ATV50, ATV90, ATV110, ATV125, ATV150, ATV200, ATV250; DIRTBIKE: 50, 70, 80, 90, 100, 110, 125, 150, 200; other series.
With our advanced techniques, well-developed production lines and hard-working staff, we are moving ever closer to our goal of superior excellence in our specialized field. Furthermore, our research and development team is devoted to making our products even more dynamic and attractive to our customers and inevitably to final consumers, too.
As the perfect combination of good quality and competitive price, we have spread our products in every corner of China and all over the world. As further evidence of our rich manufacturing experience and trustworthy product quality, we can cite the experiences of about twenty satisfied customers with whom we have established stable business relations. If you would like to join this growing number, we can only encourage you to contact us and begin talks that we hope will see the success of all parties involved. We are looking forward to hearring from you as would like to hasten the knowledge and appreciation of our products all around the world.
Our main products are the following: ATV50, ATV90, ATV110, ATV125, ATV150, ATV200, ATV250; DIRTBIKE: 50, 70, 80, 90, 100, 110, 125, 150, 200; other series.
