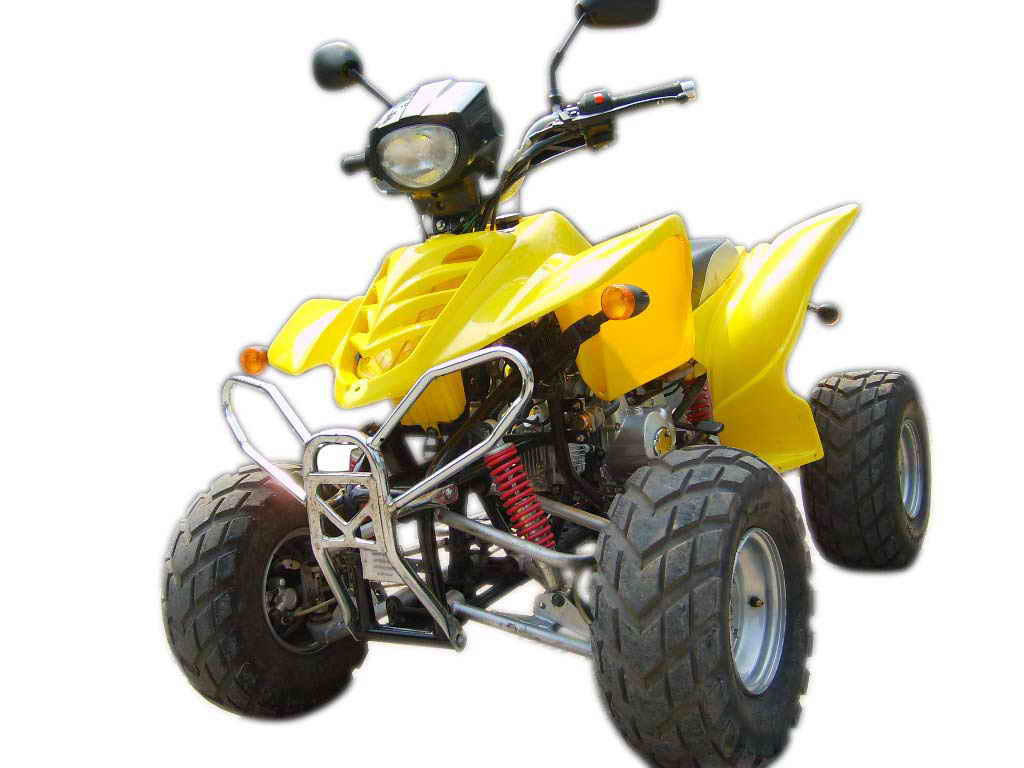

| Prod Model: | 110SLD-YE with EEC homologation |
|---|
Product Description
110sld-ye with eec homologationDry weight:141kgs
Gross weight:172kgs
Dimension:1650*990*1080mm
Packing size:1480*850*780mm
Container:30units/20', 63units/40', 66units/40'hq
Engine style:152fmh, single cylinder, air-cooled, 4-stroke
Transmission system:Chain drive
Bore * stroke:52.2*49.5(mm *mm)
Ignition:C.D.I.
Max.Power:5.0/7350±150(kw/r/min)
Max.Torque:6.2/4500±150(n.M/r/min)
Lubrication:Pressure/ splash
Transmission:Auto
Compression ratio:8.1:1
Starting type:Electric
Oil consumption:≤365(g/kw.H)
Clutch:Auto
Brake style(front/rear):Drum/disc
Front tyre:19*7-8
Rear tyre:18*9.5-8
Wheel base:1080
Front shock absorber:Absorber
Rear shock absorber:Middle absorber
Front suspension:Double a-arm
Rear suspension:Middle absorber
Displacement:107(ml)
Oil tank capacity:4(l)
Engine oil capacity:1.0l
Gear oil capacity:0.2l
Climbing ability:≥25°
Max.Load:15(kg)
Max.Speed:58(km/h)
Max.Noice:80(db)
Battery:12v-9ah
Chongqing Weijie Industry Co., Ltd. is a privately owned enterprise. As Weijie Industry Co., Ltd was fonded. It devote itself to the research, produce and sell of spare parts of the Motorcycles. After the long time practice. Weijie Moved its main work onto the reserch, produce and sell of the whole Motorcycles and ATV etc.
