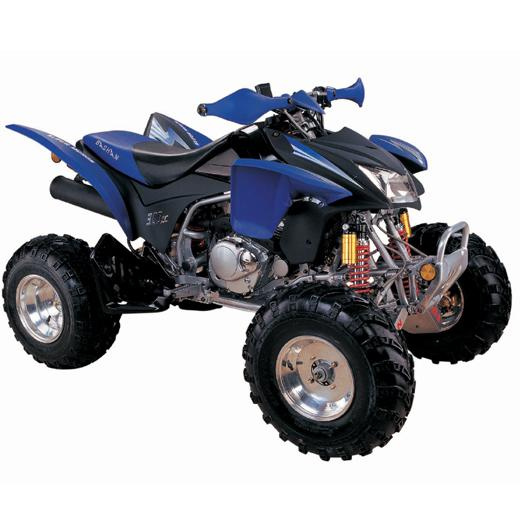

ATV (ZX-A002B)

Specifications

Prod Model:	ZX-A002B

Product Description

Engine Type: LC178FMN, single cylinder, E-start, Fan-cooled, manual clutch, chain drive.
Displacement (ml): GN300
Bore X Stroke (mm): 78 x 61.2
Compression Ratio: 8.9: 1
Max. Power (kw/r/min): 16.2/8500
Max. Torque (N. M/r/min): 20/4500
Max. Speed (Km/h): 75
Lubrication: Pressed/Splash
Clutch Type: Manual
Ignition: P. E. I
Starting System: Electirc
Transmission System: Chain drive, rear wheel drive
Front Suspension: Independent double-wishbone with gas adjustable shocks, featuring adjustable spring preload, rebound and compression damping
Rear Suspension: Pro-Link with single shock featuring adjustable spring preload, rebound and compression damping
Front Brake: Hydraulic disc
Rear Brake: Hydraulic disc
Stationary Brake: Mechanical Lock
Front Tire: 22 x 8-10
Rear Tire: 22 x 11-10
Battery: 12V 9Ah
L X W X H (mm): 1880 x 1165 x 1180
Seat Height (mm): 800
Wheelbase (mm): 1330
Turning Radius (mm): 2800
Min. Ground Clearance (mm): 170
Max. Permissionable Weight (kg): 160
Rider Capacity: 1 Person
Dry. Weigth (kg): 200
Fuel Tank Capacity (L): 11.6
