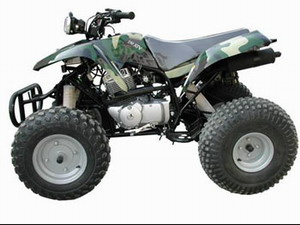

Home Shandong Zhongqi Group ATV (Zq250)
Specifications
Product Description
Code: ATV ZQ 004 2501. Dimension: 1680mm*1110mm*850mm
2. Proper Mass of Empty Vehicle: 170kg
3. Max speed: 60km/h
4. Grad ability: 20
5. Distance between axles: 1100mm
6. Distance between front wheels: 830mm
7. Distance between rear wheels: 780mm
8. Ground clearance: 150mm
9. Specification of Front Wheel: 21*7-10, 50Kpa
10. Specification of Rear Wheel: 21*9-8, 50Kpa
11. Type of Engine: 253FML
12. Bore*stroke: 53mm*53mm
13. Efficient Capacity: 234ml
14. Rated Power and Rotate Speed: 12.5KW/8500r/min
15. Max Torgue and Rotate Speed: 15N. M/7500r/min
16. Compressing Ratio: 9.2:1
17. Gearshift Mode Five Speed
18. Starting System: Electrical Starting
19. Cooling System : Air Cooling
20. Tank fuel capacity: 7.5L
21. MEASUREMENT: 1680*1120*850mm
22. Gross weight: 190KG
23. Capacity: 42pcs/40' HQ
