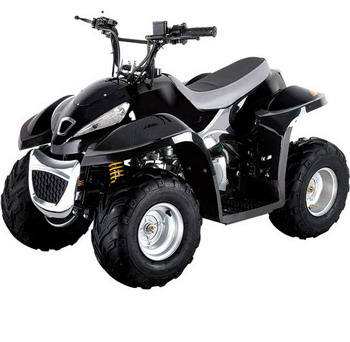

Home Yongjiang Export & Import Co., Ltd. ATV (YJ50C)
Specifications
| Prod Model: | YJ50C |
|---|
Product Description
Dimension ((LxBxH mm): 1600*890*1120Wheel base (mm): 1100
Track(mm): 660/580
Min. Ground Clearance (mm): 200
Dry Weght: 140kg
Engine Type: Single-cylinder, air-cooled, four-stroke,
Engine model: 1P39FMB/1P47FMF
Specification
Engine: Single cylinder, 90 cc, Four-stroke, Air-cooled
Drive System: Automatic
Transmission: Chain
Battery: 12V, 7AH
Start Method: Electric Start
Fuel Capacity: 3.0 L
Front suspension: Double spring suspensions
Suspension: Single spring suspension
Brake: Rear hydraulic disc brake
Front Tire: 16 X 8 - 7
Rear Tire: 16 X 8 - 7
Vehicle Dimension: 128 X 73 X 94 CM
Distance Between Axles: 79 CM
Distance Between Front Wheels: 54 CM
Distance Between Rear Wheels: 56 CM
Seat Height: 63 CM
Max. Speed: 60 KM/Hour
Weight Capacity: 150 KGS
Packaging
Measurement: 129 X 76.5 X 67 CM
G. W. /N. W.: 85/75 KGS
Container Quantity: 36 Pcs/20 Feet, 81 Pcs/40 Feet, 108 Pcs/40' HQ
