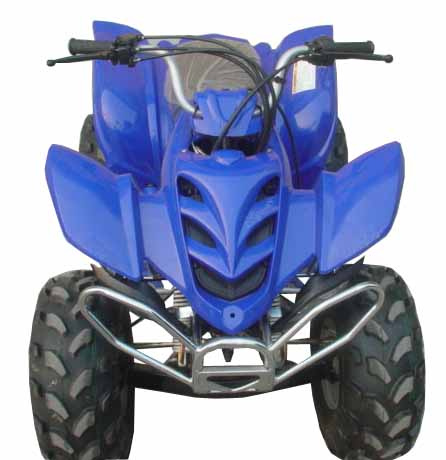

ATV (YD-Q46)

Specifications

Prod Model:	YD-Q46

Product Description

Key Specifications:

ATV engine type: 4-stroke, air cooled
Transmission system: shaft drive, 4-speed, semi automatic
Bore x stroke: 52.4 x 49.5mm
Piston displacement: 50
Max power (kW/r/min): 5.5/8000
Max torque (N.m./r/min): 6.5/5750
Starting system: electric starter
Min turning radius: 2400mm
Ground clearance: 100
Brake: front and rear by drum
Parking brake: mechanical lock
Tire: front 19 x 7-8/2.9Psi; rear 18 x 9.5-8/2.9Psi
Ignition type: C.D.I
Fuel tank capacity: 5L
Suspension: front leading arm and rear mono shock swing arm
Battery: 12V, 9Ah
Max load capacity: 95kg
Engine oil capacity: 0.95L
Gear oil capacity: 0.12L
Auto lubrication, single cylinder
Wheelbase: 1040mm
ATV size (L x W x H): 1540 x 860 x 950mm
Compression ratio: 9.1 : 1
