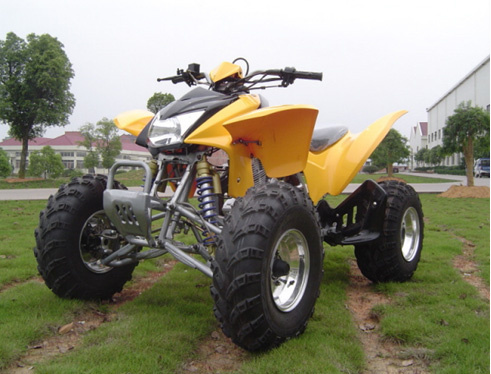

ATV (XHA250A5)

Specifications

Prod Model:	XHA250A5

Product Description

Engine type: Single cylinder, 4-stroke, water-cooled (or Air-cooled)
Clutch: Manual,
Gears: 4 forward, one reversed and neutra
Displacement(ml): 230
Transmission system: Chain drive
Starting system: Electric start
Shock absorber: Air chamber
Brake(front/rear): Disc/disc
Ignition type: CDI
Bore x Stroke(mm): 67 x 75
Max Power(kw/r/min): 11.6/6500± 500
Max Torque(N. M. /r/min): : 18/5500± 500
Max speed(km/h): 90
Fuel consumption: 5L/100KM
Minimum Turning Radius (mm): 2700
Minimum ground clearance (mm): 175
Max climbing degree: 60°
Battery: 12V-14AH
Fuel tank capacity(L): 9.8
Rider Capacity: : 1 Person
Dry weight(kg): 220
Dimension: 1880 x 1140 x 1120mm
Container(unit): 12unit/20'GP, 35unit/40'GP, 35unit/40'HQ
