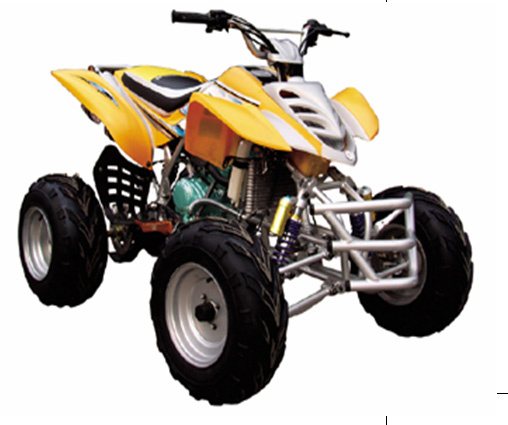

ATV (XHA200A1)

Specifications

Prod Model:	XHA200A1

Product Description

motorcycle, quad atv
Engine type: Single cylinder, 4-stroke, warter-cooled
Clutch: Manual clutch
Gears: 4 forward, one reversed and neutral
Displacement(ml): 196.98
Transmission system: Chain drive
Starting system: Electric start
Shock absorber: Hydraulic pressure
Brake(front/rear): Drum/drum
Ignition type: CDI
Bore x Stroke(mm): 63.5 x 62.2
Max Power: 10kW/7, 500rpm
Max Torque: 13.5Nm/6, 500rpm
Min ground clearance(mm): 135
Max Load Capacity(kg): 160
Max speed(km/h): 60
Min climbing degree: 25·
Battery: 12v10ah
Fuel tank capacity(L): 8.9
Rider Capacity: : 1 Person
Dry weight(kg): 230
Container(unit): 12/20' GP, 24/ 40' GP, 36/40' HQ
