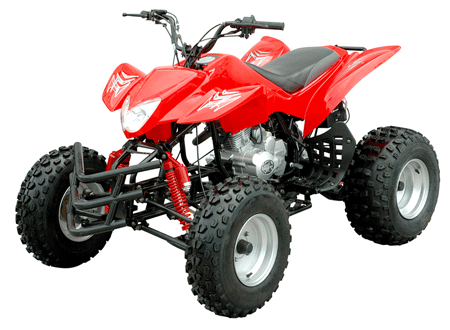

Home Zhejiang Pailision Industry Co., Ltd. ATV (WJ200ST-6)
| Prod Model: | WJ200ST-6 |
|---|
Product Description
1) Top speed (km/h): 752) Engine: 200cc, 4-stroke, single cylinder, air-cooled
3) Engine displacement (ml): 200cc
4) Bore x stroke: 53 x 53mm
5) Max. Power (kW / (r/min)): 13 / 8500
6) Max. Torque (r/min): 16.5 / 6500
7) Minimum fuel consumption: 400g/kW. H
8) Start mode: Electric
9) Transmission mode: Chain drive
10) Shift speed type: Five, with reverse gear
11) Clutch mode: Manual clutch
12) Tires (front / rear): 21 x 7-10 / 22 x 10-10
13) Brakes (front / rear): Drum / Disk
14) Braking distance (m) (30km/h): 7
15) Minimum turning radius: 3500mm
16) Climbing degree: 35
Packing:
Carton dimensions: 1550 x 890 x 800mm
N. W.: 150kg
G. W.: 180kg
Conveyance:
Qty/20' GP: 30pcs
Qty/40' HQ: 66pcs
Zhejiang pailision industry Co., Ltd. Has some collectivize scope advantage. Our group industry was related to Production, International Trade, Real Estate, Financial Investment etc. Its general headquarters are located in Yongkang City Zhejiang Province, which has always enjoyed the honorable title of being "Metropolis of Hardware " and "City of Hundred Industries". The factory covers a modernized area of 160, 000 m 2 and owns fixed assets of 318 million. In 2004 the gross output value of the group company reached 700 million, It has been chosen as "Trustworthy Demonstration Enterprise in Zhejiang Province" and "AAA Grade Enterprise of Honoring Contract and Keeping Its Promise in Zhejiang Province". It is one of the key enterprises in Yongkang City.
