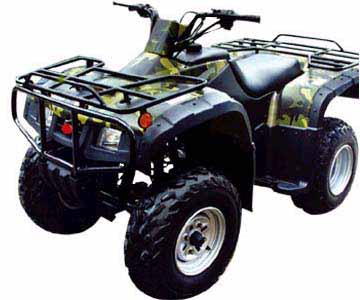

Home Gold Sunshine Appliance Co., Ltd. ATV with 250cc,4 stroke(AT07)
| Prod Model: | AT07 |
|---|
Product Description
ATV Model: AT07Packing: 1pc/carton
Size of carton: 197x111x78cm
N. W. 63KGS
G. W.: 73KGS
12pcs/20"ft, 24pcs/40"ft,
1) Engine type: 4-strokes, air cooled fully automatic
2) Transmission system: shaft drive
3) Bore x stroke (mm): 71 x 58
4) Piston displacement (ml): 229.6
5) Maximum power (kw/r/min): 10/6000-7000
6) Maximum torque (km/r/min): 15/5500-6500
7) Starting system: electric/recoil backup
8) Transmission: 5-speed, semi automatic
9) Seat height (mm): 810+/-20
10) Min turning radius (mm): 2900
11) Ground clearance (mm): 155
12) Brake (front/rear): drum/drum
13) Tire (front): AT23 x 7-10
14) Tire (rear): AT22 x 10-10
15) Ignition type: C. D. I
16) Fuel tank capability (L): 12
17) Front suspension: independent front suspension
18) Rear suspension: swing arm
19) Parking brake: mechanical lock
20) Battery: 12V-14AH
21) Max load capacity (kg): 165
22) Engine oil capacity (L): 1.6
23) Gear oil capacity (L): 0.27
24) Dry weight (kg): 220
25) Rider capacity: 1 person
26) Wheel base: 1160
27) Overall height (mm): 1160
28) Lubrication: pressuring splash
29) Overall length (mm): 1940
30) Overall width (mm): 1050
31) Compression ratio: 8.7: 1
32) Cylinder arrangement: single cylinder
Established in Yongkang in 1988, Gold Sunshine Appliance Co., Ltd. is a professional manufacturer and exporter in Scooter Series(suh as Electric Scooter, Gas Scooter, Pocket Bike, Mini Halley, Mini Chopper, Dirt Bike, ATV and Electric Bicycle). Today, Shinever Company had nine years experience in making scooter, and had two work-lines which making scooter, and become a leader in scooter in China.
Our commitment to quality is reflected in our rigorous Quality Control Systems, which most our products had passed to CE, GS and UL. These approvals been made to enable Shinever Company to achieve World Class Quality systems and procedures. This commitment to quality ensures full traceability of all our products, leading to total customer confidence in the products and services provided by Shinever Company.
Whatever your specialized requirement is, Shinever Company are capable of providing you with the solution and supplying you with the right product. We offer 120days warranty for our each model, and 3% free spare parts for each order.
Please contact us immediately, you will find we are a best partner.
Our commitment to quality is reflected in our rigorous Quality Control Systems, which most our products had passed to CE, GS and UL. These approvals been made to enable Shinever Company to achieve World Class Quality systems and procedures. This commitment to quality ensures full traceability of all our products, leading to total customer confidence in the products and services provided by Shinever Company.
Whatever your specialized requirement is, Shinever Company are capable of providing you with the solution and supplying you with the right product. We offer 120days warranty for our each model, and 3% free spare parts for each order.
Please contact us immediately, you will find we are a best partner.
