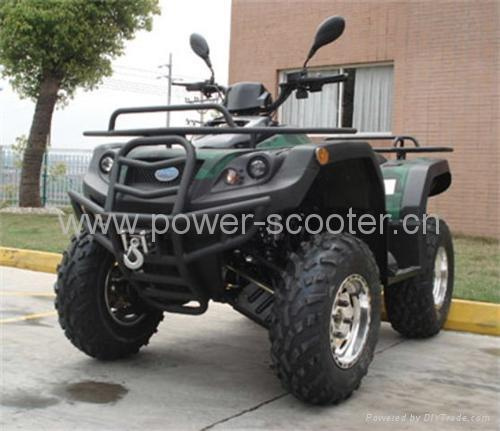

ATV (TP-KWS14-Q300X)

Specifications

Prod Model:	TP-KWS14-Q300X

Product Description

ATV (TP-KWS14-Q300X)

1) Engine type: 300cc4X4WD, water-cooled, single cylinder, 4 strokes, with H/L, N, R gear(YAMAHA TEACHNIC CVT) EEC 300cc CVT, High-Performance Relaxation. Shift gears without interruption!
2) Displacement: 278ml
3) Max. Power: 16.0Kw / 6, 500(r/min)
4) Max. Torque: 23.0N. M / 5, 500(r/min)
5) Compression rate: 10.0: 1
6) Drive system: Shaft, 4X4 front differential device w/lock
7) Clutch: Automatic clutch
8) Brake: Front and rear hydraulic disc brake
9) Tire(F/R): 25X8-12/25X10-12
10) Max. Speed: 75km/h

11) Battery: 12Vx14Ah
12) Seat Height: 850mm
13) Wheel base: 1, 280mm
14) Ground clearance: 180mm
15) Suspension: Front and rear hydraulic suspension
16) Ignition type: TCI
17) Start system: Electric start
18) Dimension: 2, 050 X 1, 230 X 1, 140mm
19) Max. Load: 200kgs
20) Fuel & tank capacity: >=93# gasoline& 12L

Packing: Steel frame and carton
Carton dimensions: 2310 X 1210 X 1130mm
Container: 8PCS/20", 18PCS/40", 18PCS/40"HQ
N. W.: 315Kgs
G. W.: 355Kgs
