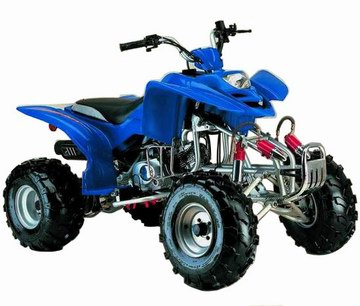

ATV (TA110R-2A)

Specifications

Prod Model:	TA110R-2A (110CC, 150CC, 200CC)

Product Description

Art. NO.: TA110R-2A (110CC, 150CC, 200CC)
Engine Type: 4-Strokes, Air Cooled, with reverse gear
Cylinder Arrangement: Single Cylinder
Transmission System: Shaft, Chain Drive
Bore x Stroke (mm): 52.4 X49.5
Piston Displacement (cc): 107
Compression Ratio: 9.1: 1
Maximum Power (kw/r/min): 4.7/8000
Maximum Torque (N. M. /rpm): 6.5/5500-6000
Starter System: Electric Starter
Lubrication: Auto
Transmission: 3 Speed, Semi Automatic
Overall Length (mm) 1510
Overall Width (mm): 810
Overall Hight (mm): 1010
Wheel Base (mm): 1120
Rider Capacity: 1 Person
Dry Weight (kg): 110
Brake (Front/Rear): Drum/DISK
Tyre, Front: 8X9.0-8
Tyre, Rear: 18X9.0-8
Front Suspension: Double "A" swing Arm
Rear Suspension: Monoshock Swing Arm
Front shock absorbers: Air chamber.
