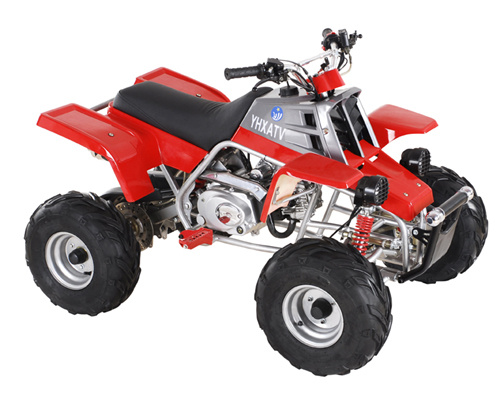

Home Ningbo Hongrun Electric Machine Co., Ltd. ATV (T-110P)
Specifications
| Prod Model: | T-110P |
|---|
Product Description
Engine1. Type:4-Stroke,Single cylinder,Air-cooled
2. Displacement:110CC
3. Bore x Stroke (mm):52.4x49.5
4. Compression Ratio:8.8:1
5. Drive system:Chain
6. Start system:Electric
7. Ignition:CDI
8. Max Speed (km/h):43
9. Max Power KW(r/min):4.6/7500
10. Max Torque N.m(r/min):6.4/5500
Chassis
11. Suspension / Front & Rear:spring shock absorber
12. Brake / Front & Rear:Double Drum/Single Disc
13. Tires / Front & Rear:19X7-8/18X9.5-8
14. Rated load(kg):100
Product Size
15. LxWxH (mm):1340X950X900
16. Seat Height (mm):680
17. Ground Clearance (mm):220
18. Wheelbase (mm):910
19. Fuel Capacity (L):2.2
20. Wheel tread(F/R)(mm):800/740
Packaging
21. G.W./N.W. (kg):112/97
22. Carton size(mm):1280x860x650
23. Container load:40'HQ:108pcs
