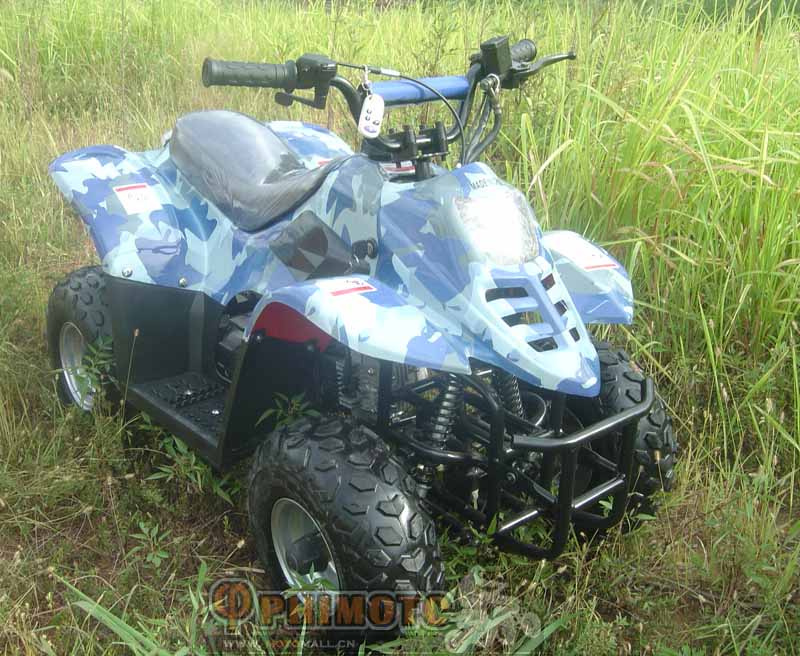

ATV (SV-Q002)

Specifications

Prod Model:	SV-Q002

Product Description

1) Vehicle Dimensions:
A) Overall length: 1120mm
B) Overall height: 730mm
C) Seat height: 560mm
D) Wheel base: 695mm

2) Petrol tank capacity: 3.4L

3) Engine: 50CC, 4-stroke, single cylinder, air cooled

4) Transmission: Fully auto clutch or 4 speeds semi auto adjustable

5) Max power (Kw/rpm): (3.54HP)2.6Kw/8500rpm approx

6) Max torque (Nm/rpm): 3.0Nm/7500rpm approx

7) Top speed (km/hr): 35km/hr approx/21Miles/hr

8) Starting: Electric start and kick start

9) Lubrication: Wet sump

10) Brake: Front and rear drum brake

Packing: Net weight: 71kg, Gross weight: 95kg

Packing Size: 115 x 71 x 59cm

Conveyance: 62Units/1x20FCL, 125Units/1x40HQ
