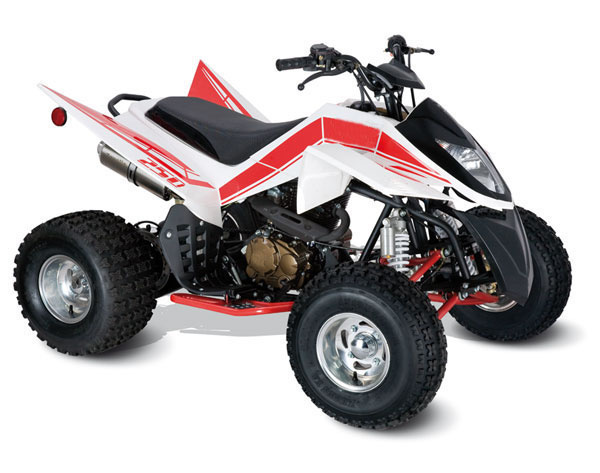

ATV SPORT 250CC (Kingmax 250S)
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 18/Piece |
| Pay Type: | T/T |
Specifications
| Prod Model: | Kingmax 250S |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Transmission: | Manual |
| Final Drive: | Chain Drive |
| Certificate: | CE |
Product Description
Manufacturer of ATV, quad, quad bike, ATV quad, 4 wheeler ATVCE approval Racing ATV 250CC Sport Quad Bike.
| ENGINE | |
| Engine Type | Single Cylinder, 4 Stroke |
| Engine Displacement | 229.2cc |
| Bore & Stroke | 67*65mm |
| Compression Ratio | 9.2: 1 |
| Fuel System | Carburetor |
| Max. Power Output | 11.5kw/6500r/min |
| Max. Torque | 17.5N. M/5500r/min |
| Cooling System | Air-cooled |
| Ignition | CDI |
| Fuel Capacity | 7L |
| Max Speed | 70km/h |
| Starting | Electric Start |
| Gearshift Type | 4-speed, manual clutch |
| Final Drive | Chain Drive |
| Battery | 12V 9A |
| Wheels and Brakes | |
| Tyres Front | 19x7-8 |
| Tyres Rear | 21x10-8 |
| Suspension Front | Dual A-arm |
| Suspension Rear | Swing arm |
| Brakes Front | Dual Hydraulic Brake |
| Brakes Rear | Hydraulic Brake |
| Dimensions and Weight | |
| Product Dimension | 1, 650x900x1060mm |
| Carton Dimension | 1, 435x900x865mm |
| Seat Height | 760 mm |
| Wheelbase | 1, 120mm |
| Ground Clearance | 120mm |
| Dry Weight | 145kg |
| Gross Weight | 171kg |
| Container Loading | 18 units/20' GP 63 units/40' HQ |
