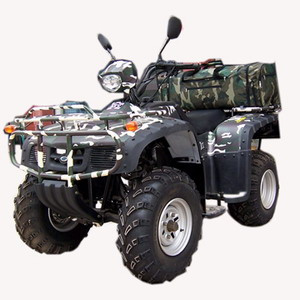

ATV(SN-EEC-ATV05)

Specifications

Prod Model:	SN-EEC-ATV05

Product Description

Specifications:
1) Engine type: single cylinder, air-cooled, 4-stroke
2) Power: 9.9kW/6,500rpm
3) Max. torque: 14.9N.m/5,500rpm
4) Min. ground clearance: 155mm
5) Wheelbase: 1,175mm
6) Fuel tank capacity: 12L
7) Transmission mode: shaft
8) Start mode: electric/manual manual
9) Tires:
a) Front wheels: 23 x 7 - 10
b) Rear wheels: 22 x 10 - 10
10) Max. speed: ≥75km/h
11) Break type (F/R): disc/disc
12) Power source: 12V, 14Ah
13) Height of seats: 820mm
14) Dry weight: 235kg
15) Load capacity: 165kg
16) Climbing degree: ≥25
17) Front hanging: arm-swing
18) Rear hanging: integral
19) Cylinder size: 71 x 58mm
20) Displacement: 230mL
21) Transmission: 5 gears, automatic clutch
22) Min. turning radius: 2,900mm
23) Parking trig: mechanical lock
24) Ignition mode: CDI
25) Engine oil: 1.6L
26) Gear oil: 0.25L
27) Max. number of riders: 2
28) Lubrication: press splash
29) Compression proportion: 8.7:1
30) Gas cylinder number: 1
31) Product dimensions (L x W x H): 1,880 x 1,040 x 1,140mm

Outer packing:
Carton dimensions: 1,970 x 1,110 x 880mm

Conveyance:
Qty/20' GP: 12 units
Qty/40' GP: 24 units
Qty/40' HQ: 36 units
