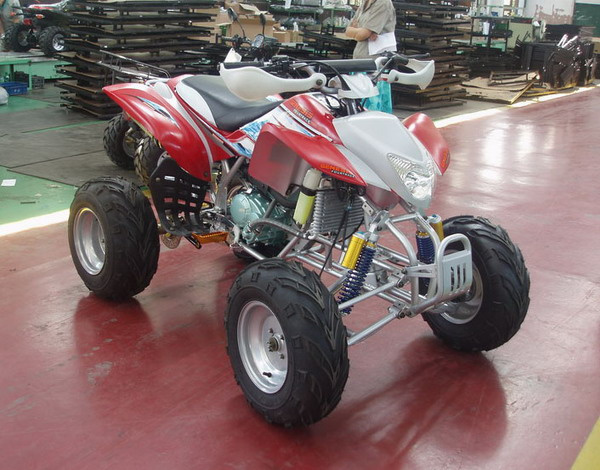

ATV (SN-ATV-200cc)

Specifications

Prod Model:	SN-ATV-200cc

Product Description

SN-ATV-200cc(Water cooling)
Specifications:
1) Engine type: Single cylinder, water-cooled, four strokes
2) Power: 10kW/7, 500rpm
3) Max. Torque: 13. 5N. M/6, 500rpm
4) Min. Ground clearance: 110mm
5) Wheel base: 1, 150mm
6) Fuel tank capacity: 4L
7) Transmission mode: Chain
8) Start mode: Electric
9) Tires:
A) Front wheels: 18 x 7-10
B) Rear wheels: 18 x 9. 50-8
10) Max. Speed: ≥70km/h
11) Break type (F/R): Drum/disc
12) Power source: 12V, 9Ah
13) Height of seats: 800mm
14) Dry weight: 150kg
15) Load capacity: 150kg
16) Climbing degree: ≥20
17) Front hanging: Double arm-swing
18) Rear hanging: Integral
19) Cylinder size: 63. 5 x 62. 2mm
20) Displacement: 197ml
21) Transmission: 4 gears with reverse gear, manual clutch
22) Min. Turning radius: 2, 700mm
23) Parking trig: Mechanical lock
24) Ignition mode: CDI
25) Engine oil: 0. 9L
26) Max. Number of riders: 1
27) Lubrication: Press splash
28) Compression proportion: 8. 8: 1
29) Gas cylinder number: 1
30) Product dimensions (L x W x H): 1, 740 x 1, 120 x 1, 140mm

Outer packing:
Carton dimensions: 1, 470 x 860 x 880mm

Conveyance:
Qty/20' GP: 20 units
Qty/40' GP: 44 units
Qty/40' HQ: 66 units
