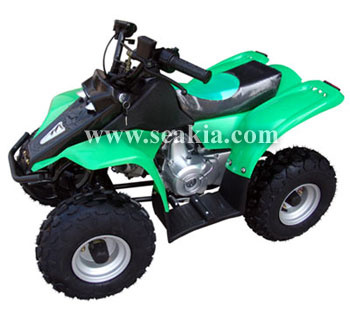

ATV(SKA50-A)

Specifications

Prod Model:	SKA50-A

Product Description

Specifications:
Engine: 50cc single-cylinder, 4-stroke
Max speed: 30km/h
Climbing ability: >15 degrees
Max load capacity: 80kg
Distance between axles: 690mm
Distance between front wheels: 420mm
Distance between rear wheels: 510mm
Ground clearance: 110mm

Specification of front wheel: 145/70-6
Specification of rear wheel: 145/70-6
Displacement: 49ml
Rated power and rotate speed: 2. 3kW/8500rpm approx
Max torque and rotate speed: 2. 7N. M/6500r/min
Compressing ratio: 7: 1
Transmission: Fully-auto clutch and 4-speed semi-auto
Starting system: Electric start and kick start
Cooling system: Air cooling
Oil tank: 3. 4L
Dimensions: 112x73x56cm
N. W. / G. W.: 63kg/71kg
Carton Size: 114x67x64cm
Container: 51pcs/20ft 102pcs/40ft 136pcs/40'HQ
