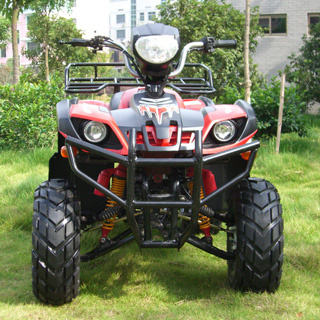

| Prod Model: | SK110ST-A |
|---|
Product Description
Engine:Engine type: Single cylinder, 4 stroke, air-cooled
Engine displacement(ml): 107
Bore x stroke(mm): 52.4*49.5
Max power (kw/(r/min)): 6/8000
Max torque(n. M/r/min): 7/6000
Compression ratio: 9.0: 1
Lubrication oil capacity(l): 0.9
Minimum fuel comsumption (g/kw. H): 365
Transmission:
Start mode: Electrical
Transmission mode: Chain
Brake mode(front/rear): Drum/disc
Front hanging: : Double arm -swing
Rear hanging: Integral
Brake distance(m/30km): 7
Shift speed tpye: Four gear with reverse gear (3-2-1-n-r)
Clutch mode: Auto clutch
External condition:
Length x width x height(mm): 1730*920*1050
Minimum turning radius(mm): 3000
Climbing degree: 30
Lamp: Head lamp
Seat height(mm): 800
Wheel base(mm): 1110
Front track(mm): 760
Rera track(mm): 680
Minimum ground clearance(mm): 150
Top speed(km/h): 55
Fuel capacity(l): 7.8
Tyre dimension(front/rear): At19*7-8/at18*9.5-8
Battery: 12V 9A
Cover material: PP
Color: Red/blue/white/yellow/black
Packing:
Carton dimensions: 1520 x 820 x 780mm
N. W.: 135kg
G. W.: 155kg
Conveyance:
Qty/20' gp: 30PCS
Qty/40' gp: 63PCS
Qty/40' hq: 63PCS
